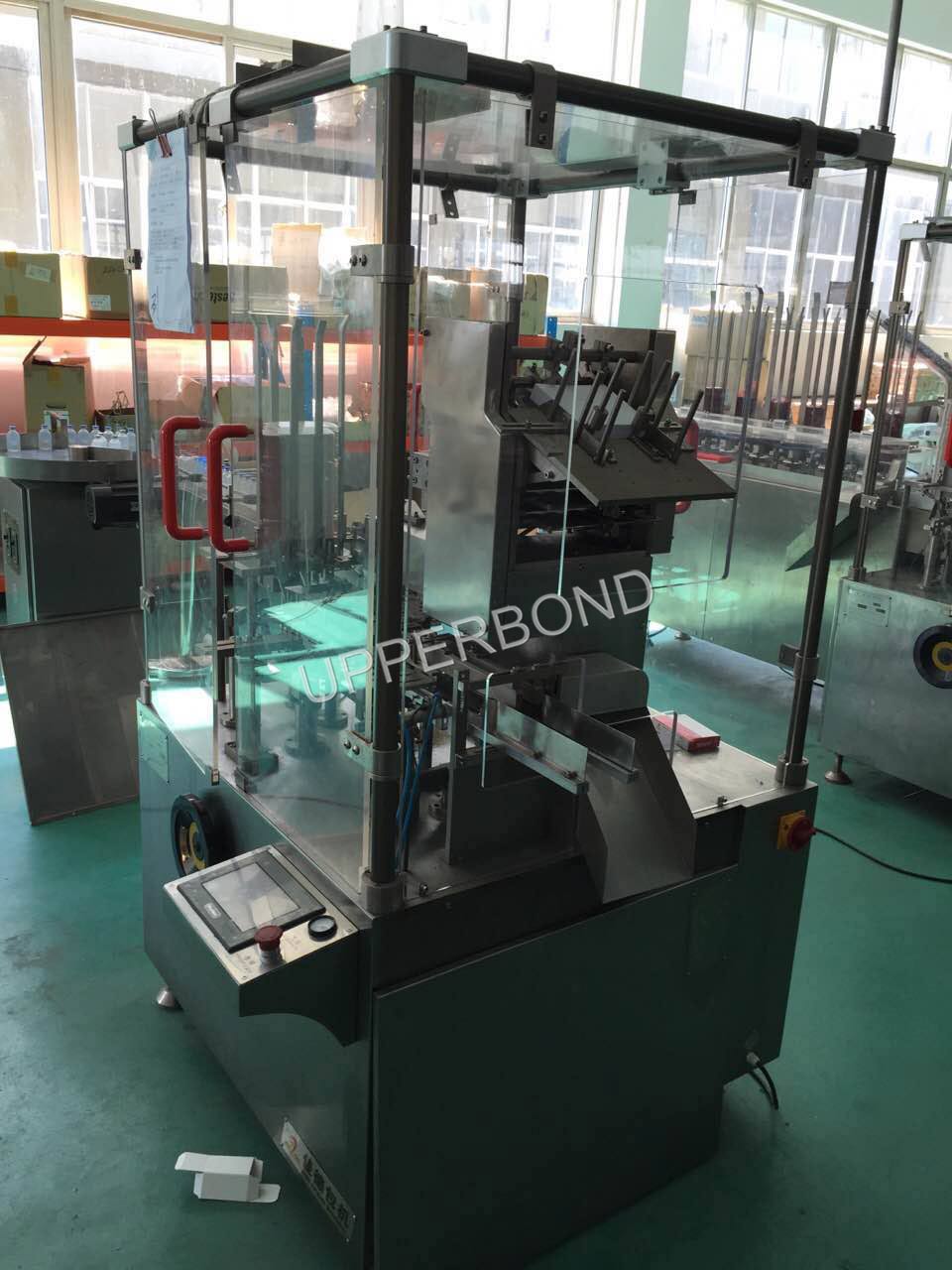

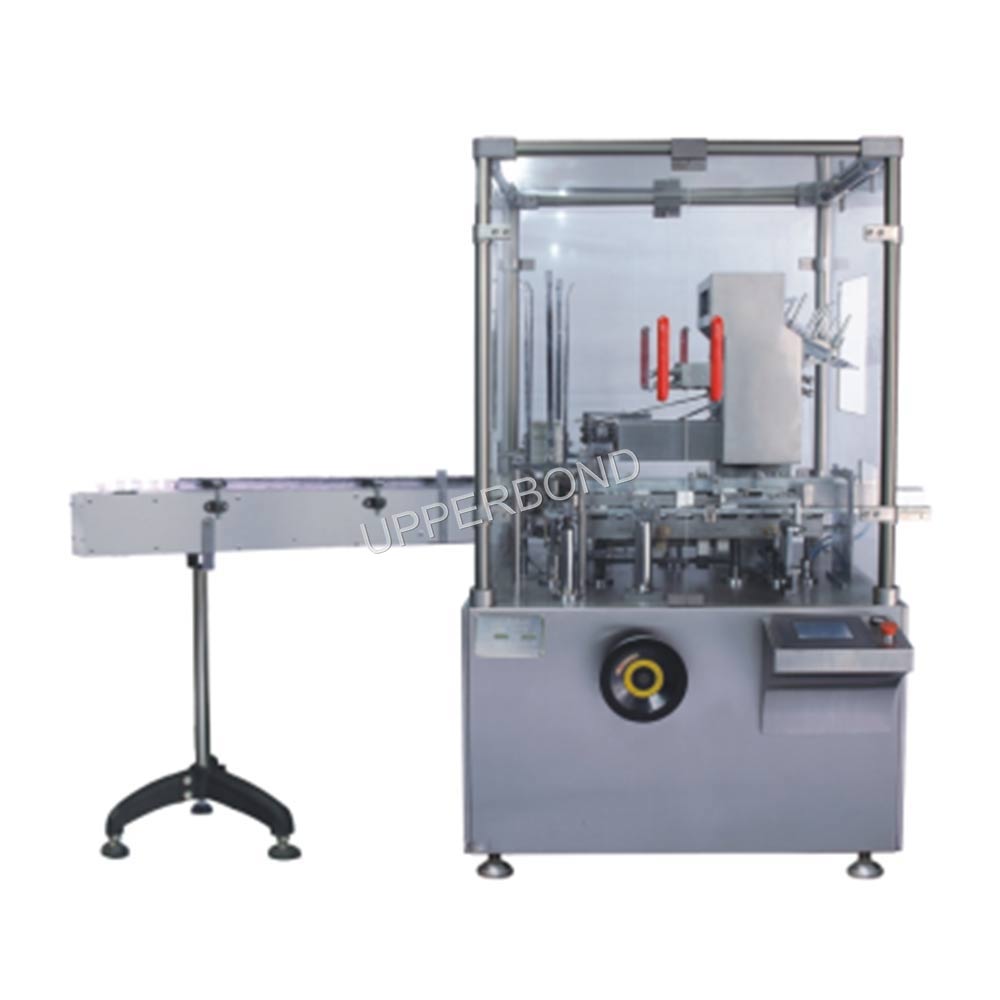

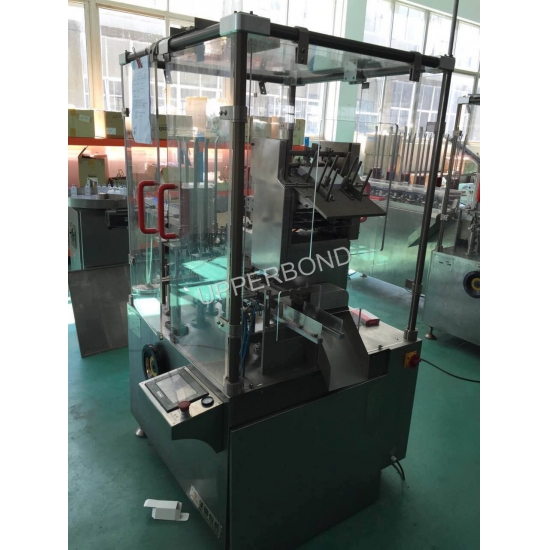

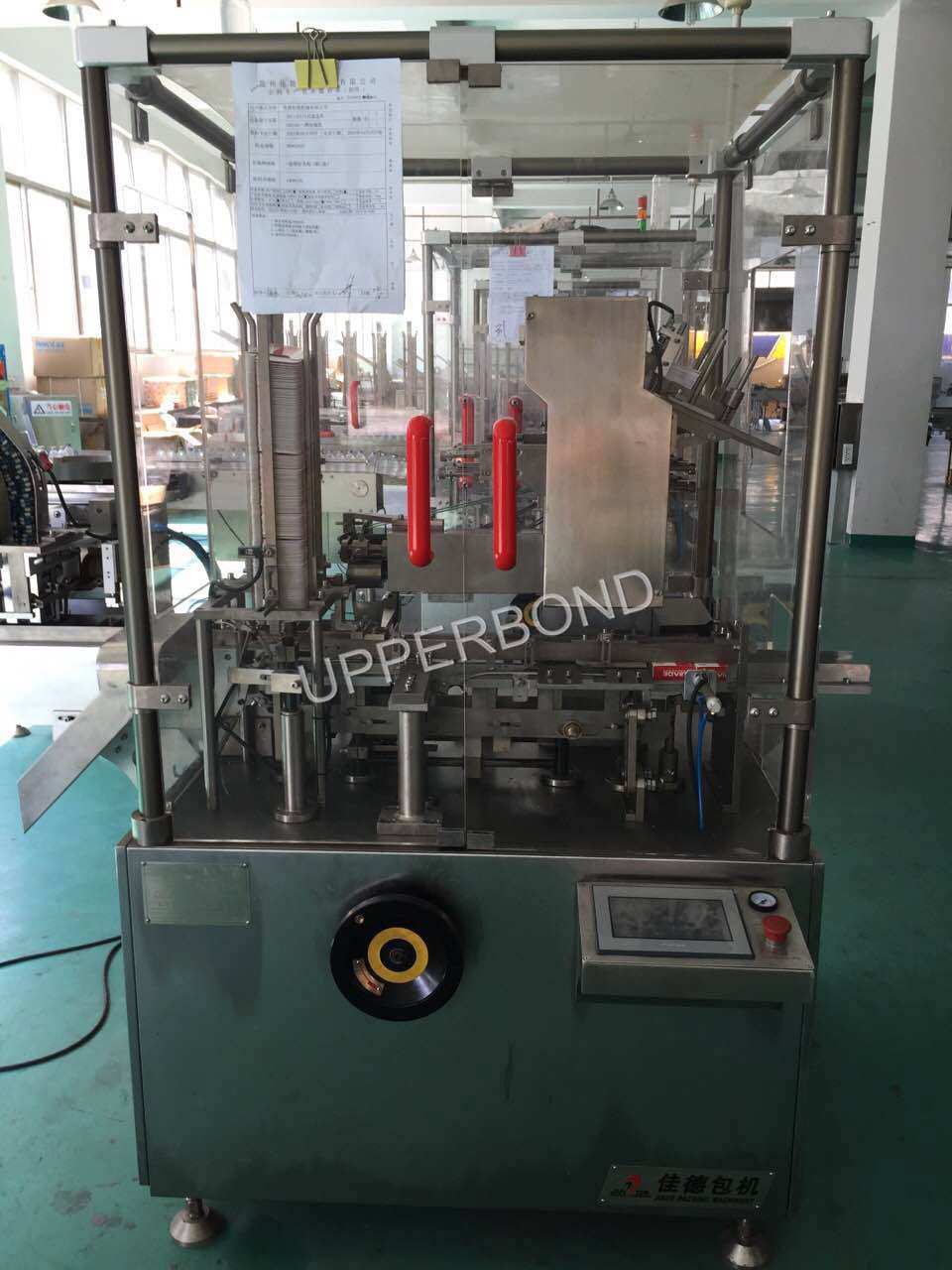

Product Overview

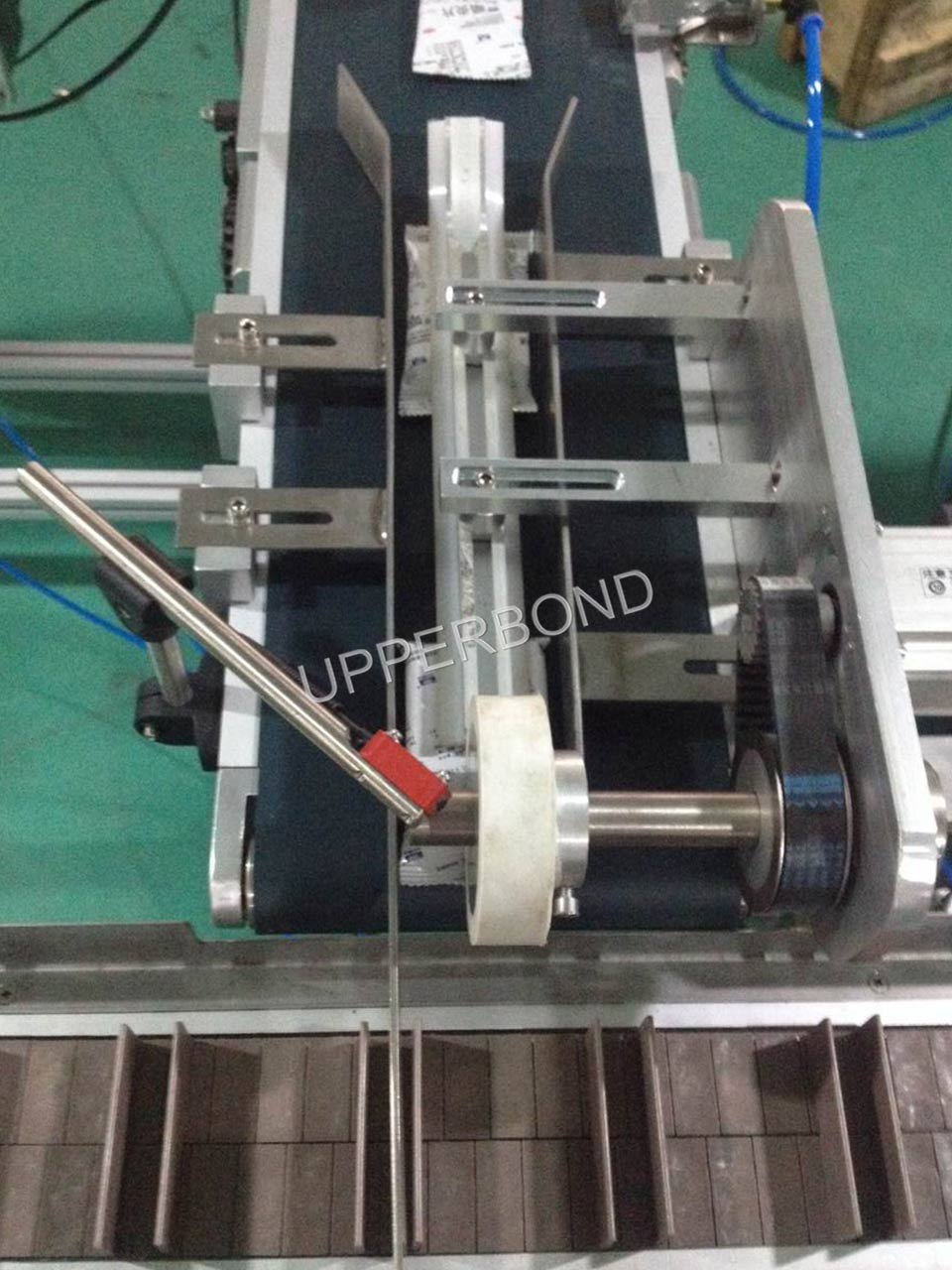

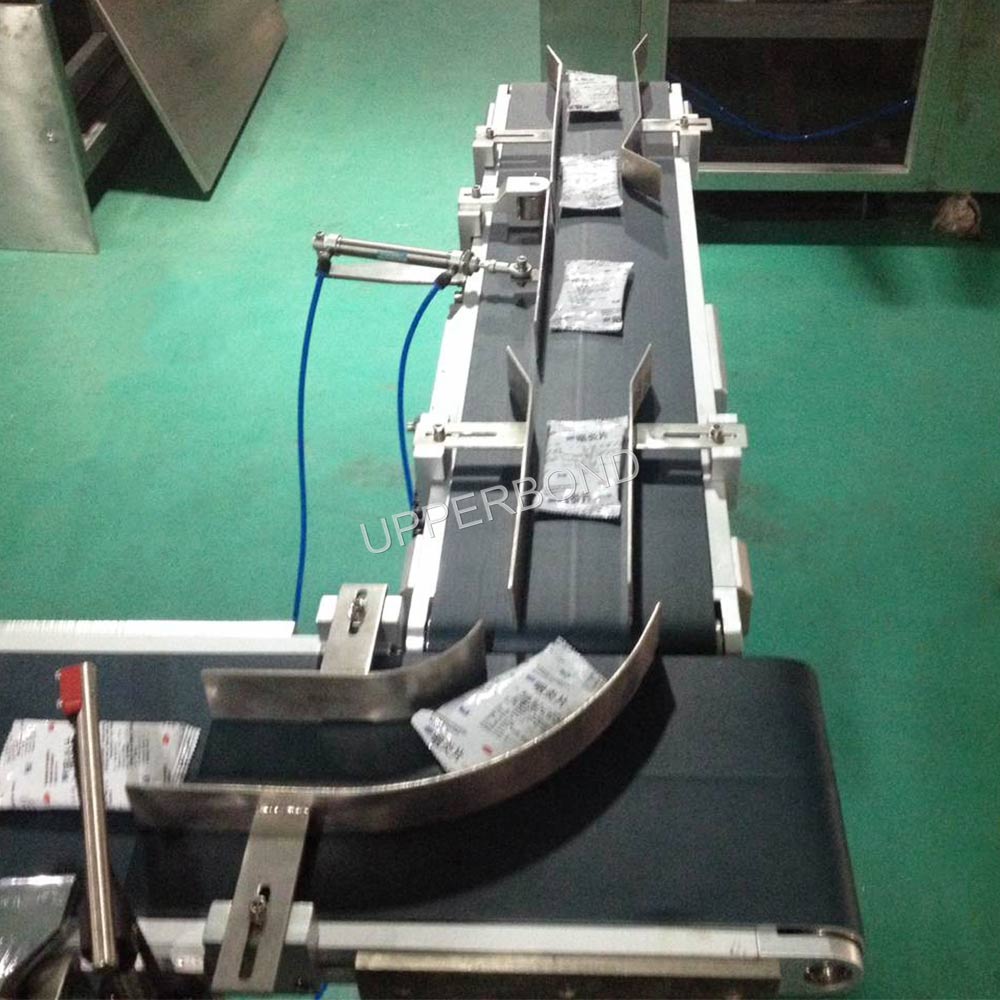

- Product or blister plate conveying
- Leaflet feeding with automatic folding (1 to 4 folds)
- Carton forming and conveying
- Simultaneous insertion of the product and leaflet into the carton
- Batch number printing
- Carton end flap sealing (hot-melt glue system optional)
Technical Specifications
Item |
Specification |
|
Cartoning Speed |
30–120 cartons/min (depending on carton size) |
|
Carton Requirements |
Carton Quality |
250–350 g/㎡ |
|
Carton Size Range(L×W×H) |
(65-155)mm × (30-85)mm ×(15-50)mm |
Leaflet Requirements |
Paper Quality |
60–70 g/㎡ |
|
Unfolded Size (L×W) |
(80–250)mm × (90–170)mm |
|
Folded Range (L×W) |
1 to 4 folds |
Compressed Air |
Working Pressure |
≥ 0.6 MPa |
|
Air Consumption |
120–160 L/min |
Power Supply |
220V, 50Hz |
|
Main Motor Power |
0.75 kW |
|
Machine Dimensions (L×W×H) |
2300mm×1140mm×1800mm |
|
Net Weight |
Approx. 1200 kg |
|
