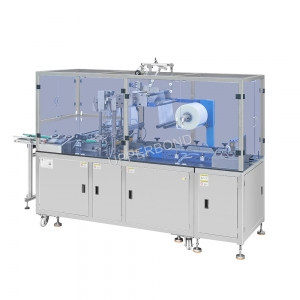

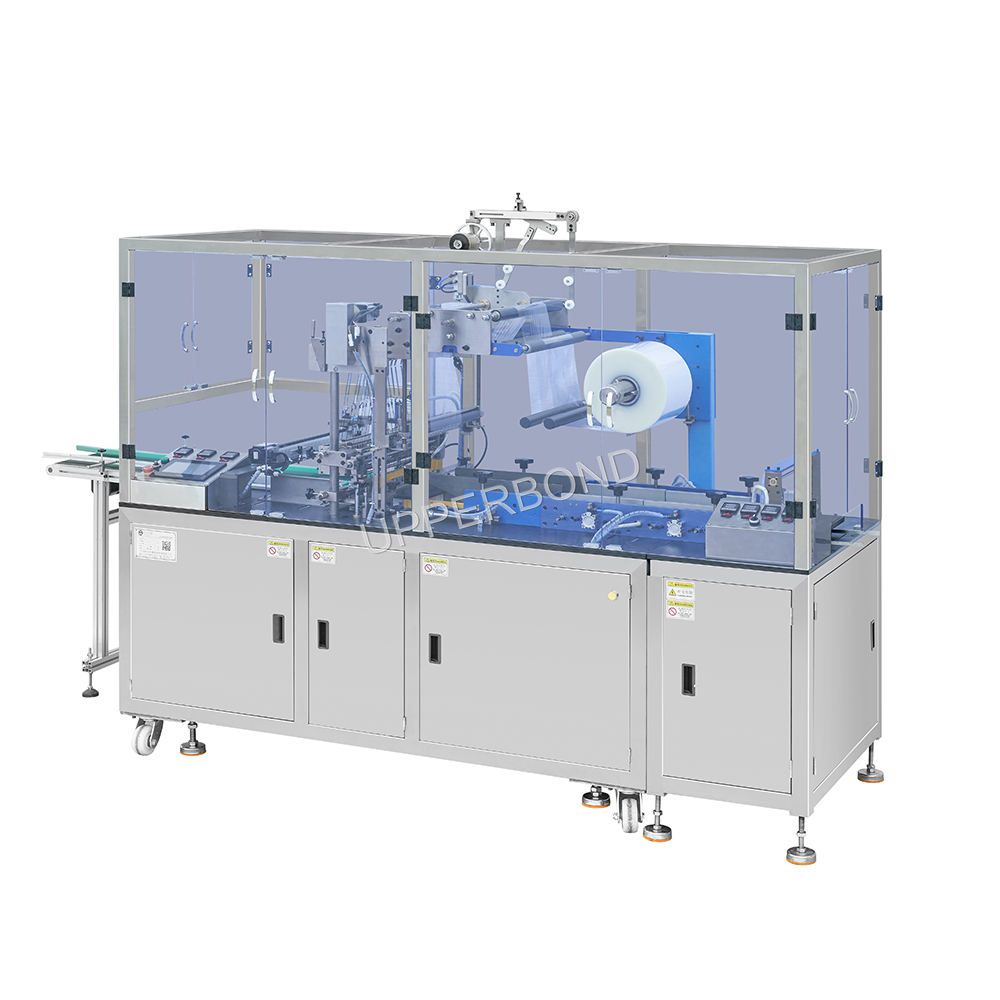

Auto BOPP Film Overwrapping Machine for Box Packaging

• Item Code: UBD-15002

Contact Supplier

This machine is widely used in various industries such as pharmaceuticals, food, health products, cosmetics, daily necessities, stationery, and playing cards. It is suitable for both multi-box bundling and fully enclosed single box wrapping of boxed items.

After wrapping, products benefit from the “Three Protections & Three Enhancements”:

Three Protections: Anti-counterfeiting, moisture-proof, and dust-proof

Three Enhancements: Improved product appearance, enhanced product value, and elevated brand image

Equipped with an imported PLC control system and integrated electromechanical operation, the machine offers reliable performance, easy operation, and high adaptability. It can be connected with cartoning machines, case packers, and other upstream or downstream equipment for fully automated production lines.

1. HMI with PLC control and real-time fault diagnosis
2. Servo-driven film feeding with adjustable speed and length
3. Smooth operation, accurate synchronization, firm sealing
4. Compact design, easy to operate and maintain, full safety protection
5. Fully automatic: feeding, wrapping, heat sealing, shaping, counting

Item	Specification

Item	Specification
Packing Speed	25–55 boxes/min
Packing Dimensions	Length: 50–270 mm Width: 40–180 mm Height: 20–80 mm
Power Supply	220V / 380V 50HZ
Power Consumption	11KW
Air Pressure	0.4-0.6 MPa
Machine Weight	Approx. 450 kg
Packaging Materials	BOPP
Machine Dimensions	3000 mm (L) × 1100 mm (W) × 1850 mm (H)
Heat Seal Temperature	100-150 ℃
