AMF-4000 Cigarette Soft Pack Machine
INTRODUCTION

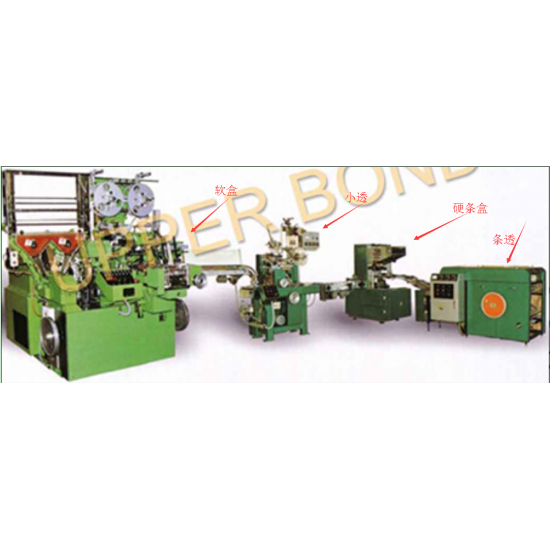

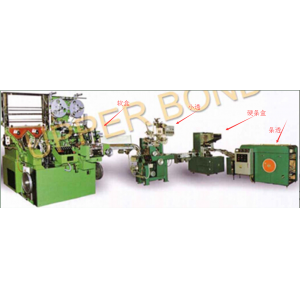

AMF-4000 cigarette soft pack machine is one kind of high speed packing machine. Its max speed can get to 150 packets/min. And it can pack the cigarettes' length of 84mm-100mm, different diameter's cigarettes. The soft pack line included AMF4000 soft packets, YB52 wrapper, YB62 carton and YB92 carbon film.
FINISHED GOODS
Different size of cigarette will packing into soft packets according to client's specific demand. One machine can only make one type of cigarettes, however, modification tools are needed to make anther types.
PARAMETER
Rated Production Capacity: |
15carton/min |
Efficient Work Rate: |
85% |
Suitable Cigarette Rod |
|
Length: |
84.5mm |
Diameter: |
7.8-7.9mm |
Rated Voltage: |
380V |
Rated Power: |
9.66KW |
Compressed Air |
|
Pressure: |
0.4 - 0.8MPa |
Air Consumption Rate: |
0.75m/min |
Weight: |
5725kg |
Appearance Size(L*W*H) |
|
AMF4000: |
1961*1905*1972 |
YB52: |
2625*950*1840 |
YB62 |
1780*1950*1520 |
YB92 |
1500*1070*1142 |
