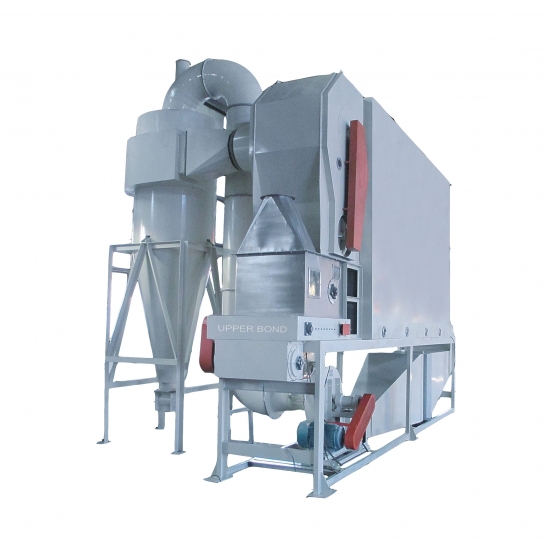

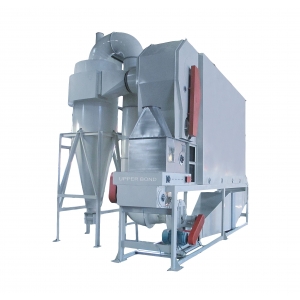

Hot Air Fluidized Cut-Stem Drier

Application and Features

    1.Hot Air Fluidized Cut stem drier is designed for cut stem expansion and drying, it combine with steam jet                   conditioning machine be used in Pilot cut-stem processing line.

     2.The filling power of cut stem can be reached over 6cm3/g.

     3.Cut stem is fluidized by Hot air during expanding and drying, whole process just needs 6 seconds.

     4.The cut stem moisture content is adjustable.

     5.Build in Cut-stem pneumatic classifier for separate stem slivers conveniently.

     6.Special designed air heating system and structure, energy save.

     7.Minimum space requirement, simple operation and easy maintains

Technical Specifications

Item	Unit
Output	kg/h	200 -400
Drying period	s	6
Temperature of air	°C	150
Heat resource		Steam
Moisture of cut stem at inlet	%	39
Moisture of cut stem at let-out	%	14±0.5
Steam consumption	Kg/h	350-700(0.7MPa)
Electrical	kw	18.5
Weight (approx)	kg	6000
Dimension	mm	8650mm×1240mm×5000mm
