- CT64D
- GUANGZHOU
- 2 months

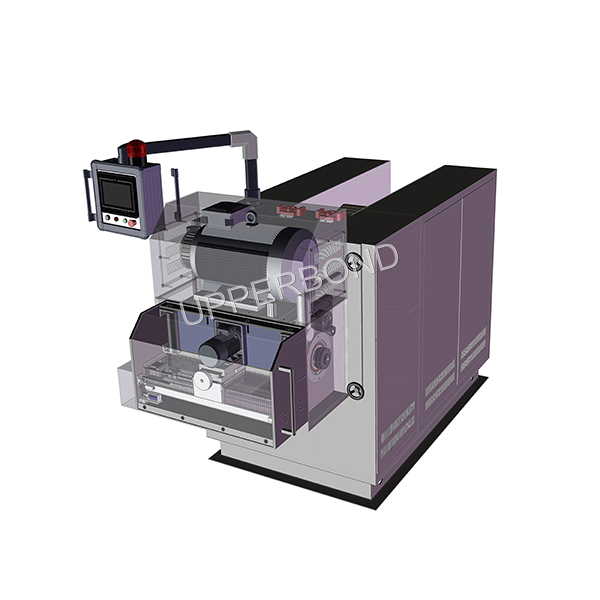

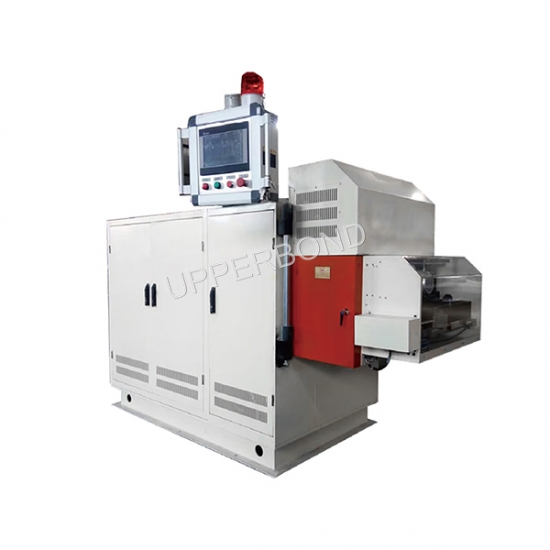

CT64D cutting machine is our company independently developed special machine for cutting vegetables, tea, tobacco and so on. The cutting machine comprises body, feeding chain, compaction chain, cutting head, automatic blades sharpening device, automatic blades advancing device and control system. This machine adopts our innovative proprietary technology and servo drive. Variable frequency control, PLC and touch screen automatic control system, it has multi-parameter setting and multiple working mode to meet different production need.
Main Parameter
| Items | Unit | Parameter | Remarks | |
| 1 | Cutting width | mm | 0.15 - 1.5 | Adjustable |
| 2 | Bulk density of material | kg/m3 | 110 | At 12% moisture content |
| 3 | Rated capacity (0.8mm cutting width) | kg/h | 1000 | Depend on material & cut width |
| 4 | Mouth piece height | mm | 60-80 | |
| 5 | Mouth piece width | mm | 400 | |
| 6 | Number of blades | P | 6 | |
| 7 | Cutting drum speed | rpm | 100-350 | Servo Speed Control |
| 8 | Compress air | MPa | 0.6 | |
| 9 | Blade life | Hr | 140 | When cutting drum 350rpm Adjustable |
| 10 | Grinding wheel life | Hr | 52 | When cutting drum 350rpm Adjustable |
| 11 | Installed power | kw | 12.85 | |
| 12 | Control mode | Servo-driven+PLC+touchscreen | ||
| 13 | Weight (approx.) | kg | 4500 | |
| 14 | Dimensions | mm | 2567*1116*1660 | |
Details
