High Quality Automatic Transparent Film Wrapping Machine With 120 Packs / Mins

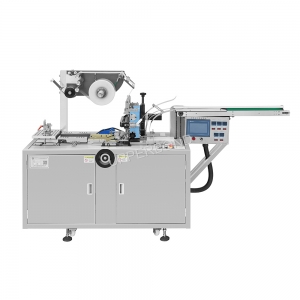

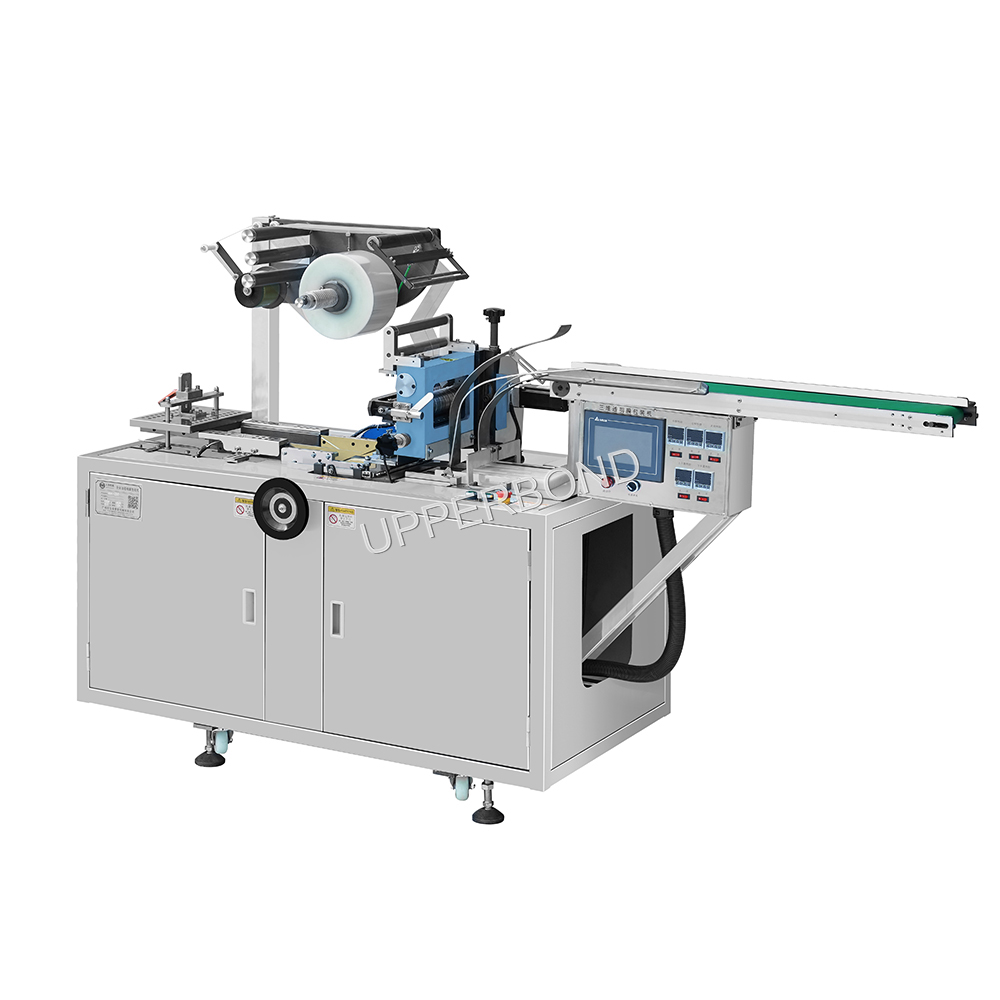

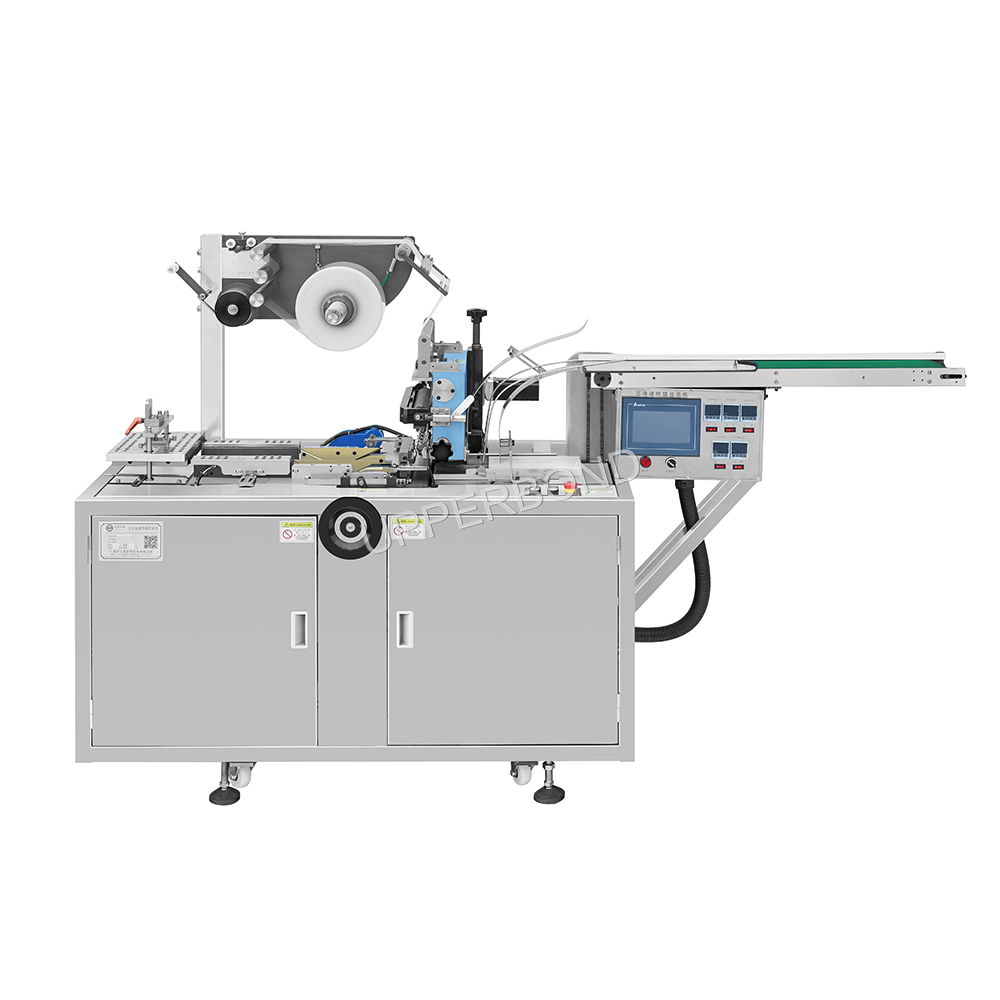

Automatic Transparent Film Wrapping Machine With 120 Packs / Mins

Item Code: UBD-15001
Payment: T/T, L/C, etc.

Contact Supplier

Product Details

The Fully Automatic Cellophane Film Wrapping Machine is widely used in various industries such as tobacco, pharmaceuticals, food, healthcare, cosmetics, and audiovisual products. It is specially designed for the external decorative wrapping of square and rectangular boxed items, offering enhanced product protection and visual appeal.

Applicable Products Include:

Cigarette boxes, chewing gum, health supplements, tea, sugar cubes

Condoms, erasers, mosquito coils, e-cigarettes

Audio and video products such as cassette tapes, VCDs/CDs, and DVDs

Playing cards, transparent soaps, square batteries, floppy disks

This machine provides anti-counterfeiting, moisture-proof, and dust-proof protection, which significantly improves product presentation and increases added value. It can also be integrated with a cartoning machine for streamlined and fully automated production lines.

Compact and Robust Structure: Stainless steel frame ensures durability, hygiene, and GMP compliance.

Stable Performance & Easy Operation: Advanced system design guarantees consistent performance with simple maintenance.

Stepless Speed Adjustment: Equipped with a multifunctional digital frequency converter for smooth variable speed control.

Quick Mold Changeover: Modular design allows for fast and convenient mold replacement for different box sizes.

Tear Tape Device: Built-in tear tape applicator provides an easy-open feature for wrapped products.

Automatic Feeding & Counting: Supports continuous automatic material feeding and precise product counting.

Comprehensive Safety Protection: Multiple safety and fault alarm systems integrated in the drive section.
Film Feeding Clutch for Testing: Trial-run clutch for film feeding avoids unnecessary material waste during setup.

Item	Specification

Item	Specification
Packing Speed	60–120 boxes/min
Packing Dimensions	Length: 50–160 mm Width: 30–85 mm Height: 10–35 mm
Power Supply	220V 50HZ
Power Consumption	3.5KW
Air Pressure	0.4 MPa
Machine Weight	Approx. 450 kg
Packaging Materials	BOPP / PVC
Main Machine Dimensions	1500 mm (L) × 690 mm (W) × 1600 mm (H)
Conveyor Dimensions	840 mm (L) × 164 mm (W) × 800 mm (H)
