- MC600
- HUANGPU, GUANGZHOU
- T/T
- Green
- 2 months

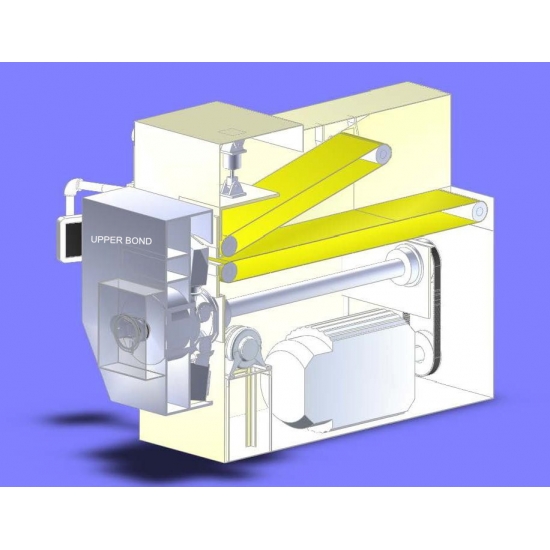

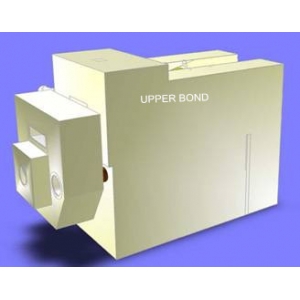

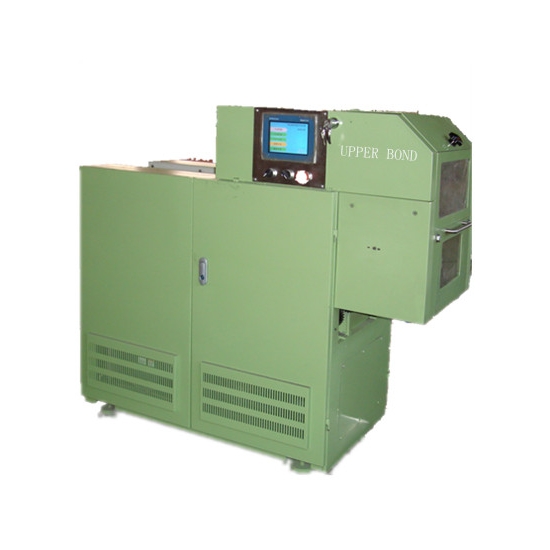

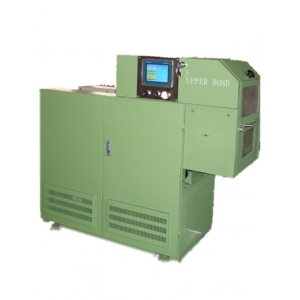

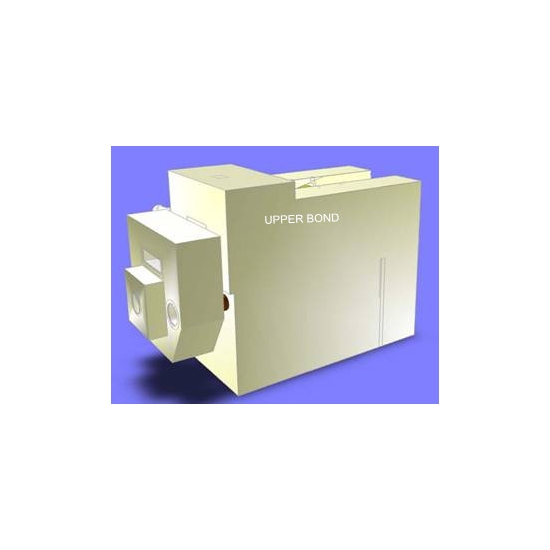

MC600 Pilot Rotary Tobacco Cutting Machine
INTRODUCTION
MC600 Pilot Rotary Tobacco Cutting Machine is new
developed tobacco special machines for match the pilot primary processing line.
As same as large cutting machine, the pilot tobacco rotary cutting machines
have all functions and high performance. It can widely use to lab, pilot
production line and special production need.
FEATURE
1. The Cutter head and feeding conveyor are
driven respectively by high performance motor, speeds ratio between cutter head
and conveying belt is controlled by PLC, which make the adjustment of cutting
width is simple, exact and reliable.
2. Upper mouthpiece and upper conveying belt
is hold by pneumatic and mechanical mechanism; witch keeps the pressure of
tobacco invariable.
3. Pressure of mouthpiece regulate by
proportional reducing valve.
4. Can low speed operation in high cutting
quality.

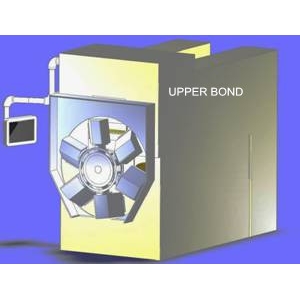

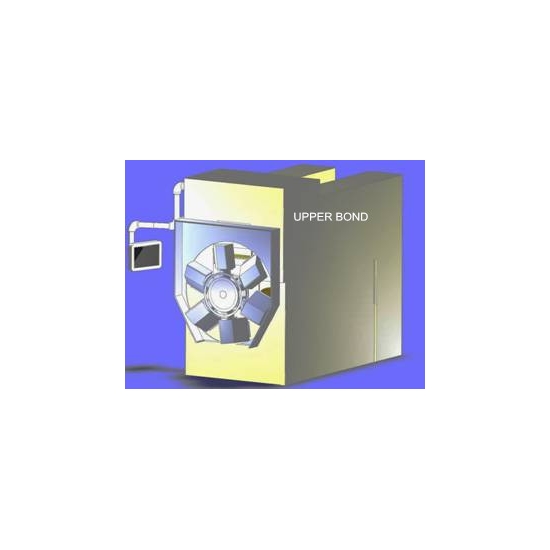

5. Rotary planning cutting along horizontal
makes cut-action soft and good quality.
6. Blade advancing mechanisms keep knives advancement
continually to suppress its wear.
7. Grinding wheel keeps knives sharply. Which
have trimming & advancement functions.
8. Control panel equipped touch screen for
convenient operation.
TECHNICAL SPECIFICATION
Item |
Unit |
MC600B |
MC600A |
Remark |
Remark |
mm |
0.1-0.3 |
0.3-2 |
Adjustable |
Output Max. |
kg/h |
200( at 0.15mm) |
1000( at 0.8mm) |
|
Mouthpiece Max. Height |
mm |
60 |
60 |
|
Mouthpiece Width |
mm |
300 |
300 |
|
Number Of Knives |
piece |
6 |
6 |
|
The Service Life Of The Blade |
h |
56 |
56 |
|
Speed Range Of Drum |
rpm |
350 |
350 |
Adjustable |
Compressed Air |
MPa |
0.6 |
0.6 |
|
Electrical |
kw |
8.9 |
8.9 |
|
Weight |
kg |
1200 |
1200 |
|
Dimension |
mm |
2245*960*1570 |
2245*960*1570 |
