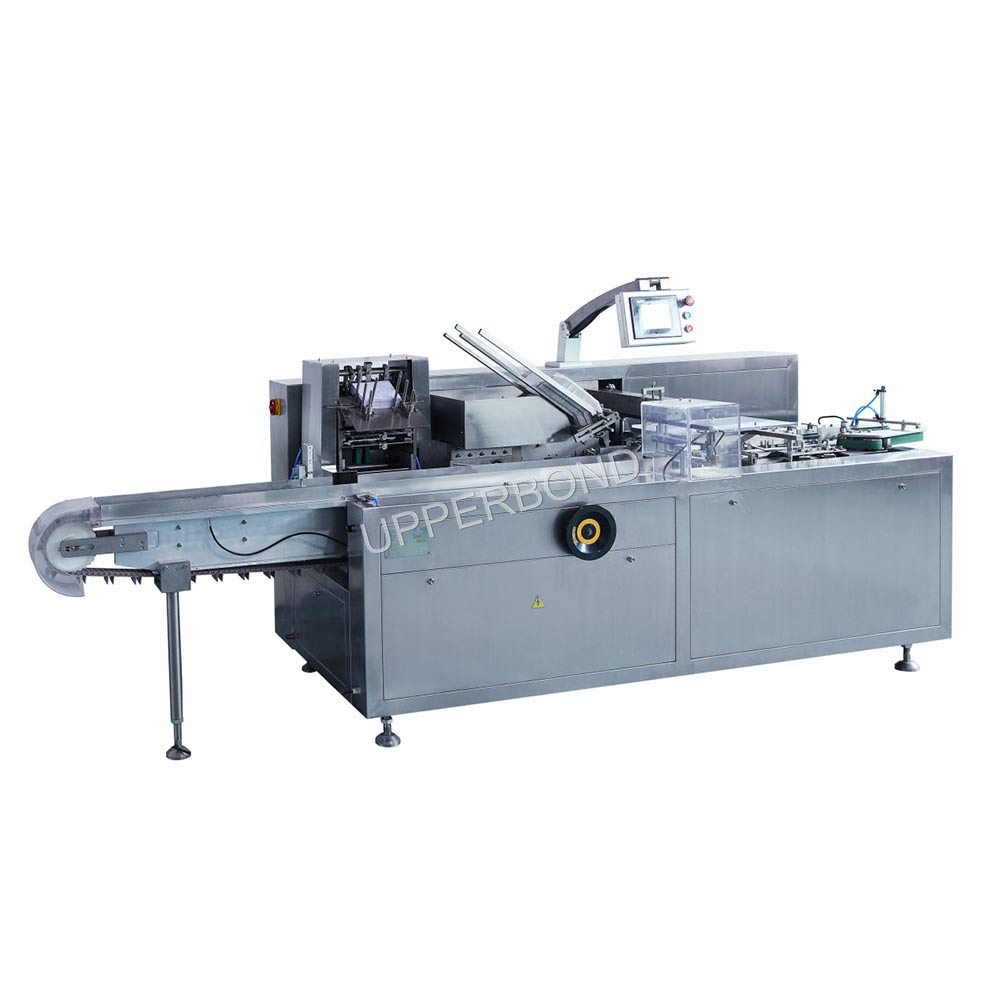

The Automatic Horizontal Cartoning Machine is an advanced high-tech packaging equipment that integrates light, electricity, air, and mechanical systems. It is specifically designed for automatic cartoning of pharmaceutical creams, granular sachets, soft pouches, and tray-type products.

This machine performs a fully automated process including:

• Product conveying
• Leaflet feeding (with automatic folding in 1 to 4 folds)
• Automatic carton erection and conveying
• Simultaneous insertion of the product and folded leaflet into the carton
• Batch number printing
• Tuck-in flap sealing on both ends

Item		Specification
Cartoning Speed		30–120 cartons/min (depending on carton size)
Carton Requirements	Carton Quality	250–350 g/㎡ (depending on carton size)
	Carton Size Range(L×W×H)	(70-180)mm x (35-85)mm x (14-50)mm
Leaflet Requirements	Paper Quality	60–70 g/㎡
	Unfolded Size (L×W)	(80–250)mm × (90–170)mm
	Folded Range (L×W)	1 to 4 folds
Compressed Air	Working Pressure	≥ 0.6 MPa
	Air Consumption	120–160 L/min
Power Supply		220V, 50Hz
Main Motor Power		0.75 kW
Machine Dimensions (L×W×H)		3100 mm × 1100 mm × 1550 mm
Net Weight		Approx. 1400 kg
