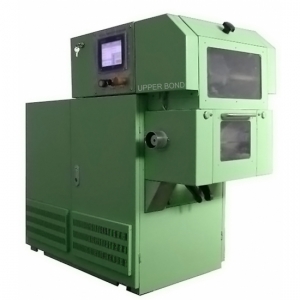

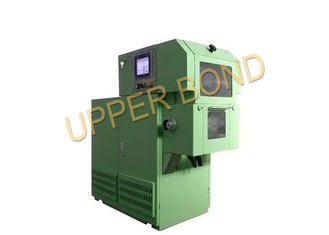

MC50 Mini Cutter For Tobacco Lamina

Introduction

MC50 Mini Cutter is the new product that our company independently developed. It combines the character and actual production experience of the similar type, with high performance, high technical content of roller knife type Mini Cutter, aiming at meet the need of the small production and laboratory actual requirement.

Main Purpose and Scope

MC50 Mini Cutter applies to cut lamina/stem with the speed of 200-500kg/h in the pilot line or lab. To make the specification of the processed lamina and stem conforms to the specified requirements of the cigarette craft. The width of cutting is adjustable at the range of 01-3mm easily.

MC50 Mini Cutter also applies to the vegetables cutting and processing in the food processing production line with the speed of 500-1500kg/h. To make the specification of the processed vegetable leaves conforms to the specified requirements of the craft. The width of cutting is adjustable at the range of 01-6mm easily.

This cutter is wide scope, easy to use and maintain, advanced control function and with cutting width, speed, material status, fault display, manual and automatic control functions.

Basic Parameter and Main Performance Indexes

Item	Unit	Type A Parameter	Type B Parameter
Cutting width A	mm	1	1
Cutting width B	mm	0.15	0.15
Material volume	kg/m3	150	150
Material compression ratio	5	5	5
Rated capacity (0.8mm cutting width)	kg/h	288	810
Rated capacity (0.15mm cutting width)	kg/h	43.2	121.5
Knife door high	mm	20	30
Knife door width	mm	200	300
Knife roll diameter	mm	200	200
Blade quantity	pcs	4	4
Knife roll rate	pm	400	500
Supply gas pressure	MPa	0.5	0.5
Total power	kw	4.61	4.61
Total weight	kg	450	450
Overall dimension	mm	1060*530*1000	1060*650*1000
