Product Details
At present, the tobacco market has increasingly requirements for the quality of cigarettes so that improve the quality of cigarettes and achieve various indicators, the requirements for testing items such as cigarette ventilation rate are the main steps for tipping cigarettes.
Using ordinary cigarette tipping paper and filter rod forming paper to use the full roll coating roller coating method. Online laser drilling reduces the influence on the ventilation rate of cigarettes, improves the stability of ventilation rate, and thus improves the detection indexes of cigarettes. Stability provides a timely and effective control while reducing the cost of cigarettes.
Using ordinary cigarette tipping paper and filter rod forming paper to use the full roll coating roller coating method. Online laser drilling reduces the influence on the ventilation rate of cigarettes, improves the stability of ventilation rate, and thus improves the detection indexes of cigarettes. Stability provides a timely and effective control while reducing the cost of cigarettes.

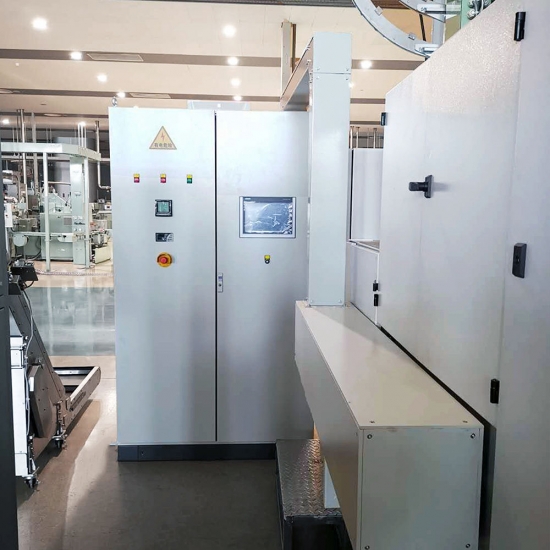

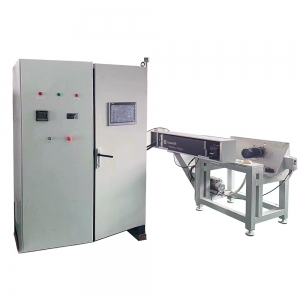

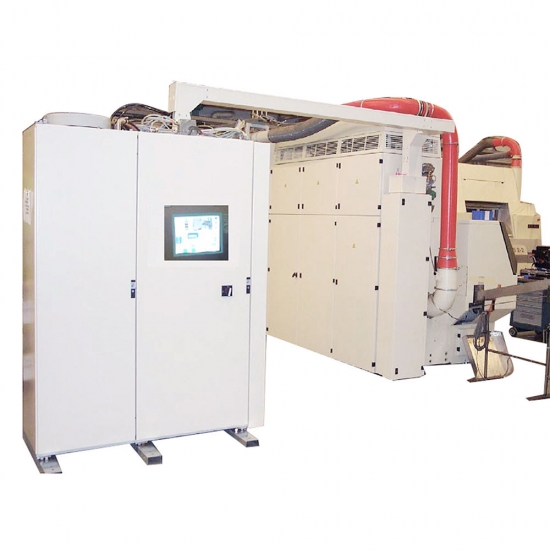

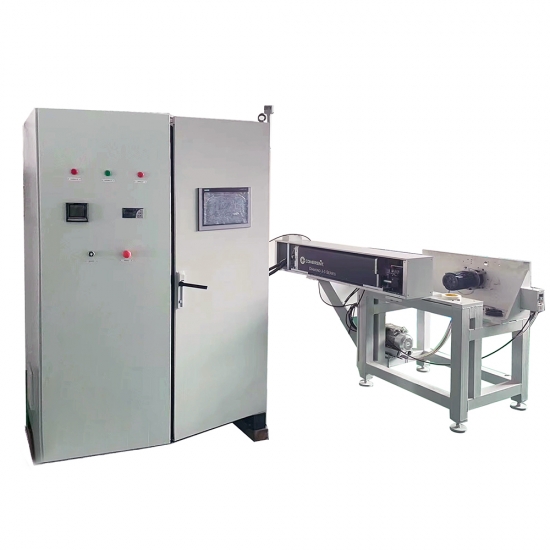

Online Cigarette Laser Drilling
low operating costs, reduced focus, convenient and fast control, and stable data
Has a wider range of applications: Use by 80% of cigarette makers in foreign companies
Higher efficiency: No need to stop the glue line cleaning, no cigarette leakage, flapping, hole blocking
Lower production costs
Higher stability
Online Laser Drilling Technical Parameters
Working voltage: 3 × 380V AC. 50/60Hz

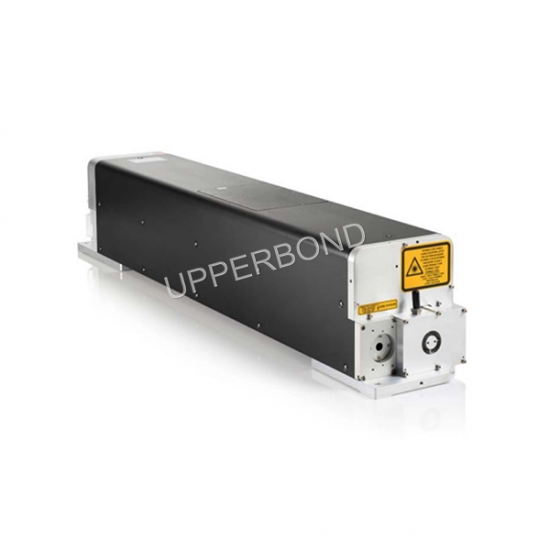

Power consumption: up to 6kw. Laser model: K series CO2 pulsed laser
Wave length: 10.6 μm
Divergence: ≤2.1 mrad
Laser diameter: 7.2 mm
Resonant life: >20,000 hours
Resonant storage time: <3 years
Punch pulse time: 5 ~ 60μs
Number of holes: 0-99 holes
Air compressor consumption: 4.5m3/h
Cooling water consumption: 40kg distilled water
