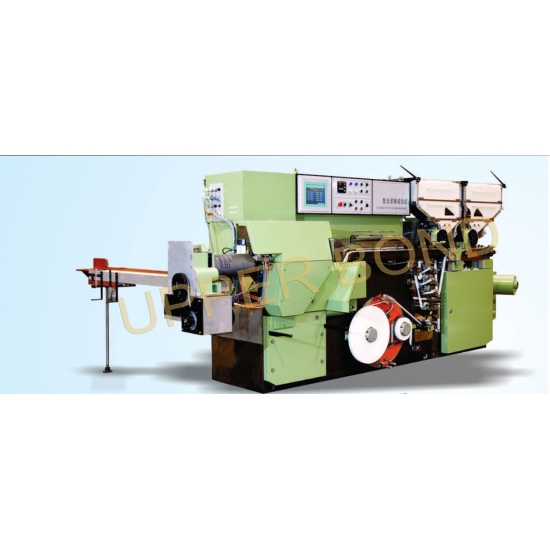

YL43 Dual/Triple Charcoal Filter Rod Maker (Special combination)

Production Process:  To combine two different kinds of filter rods together into special filter rods

Specifications

Dual/Triple charcoal filter rod combination

YL43 Dual/Triple filter rod maker could combine two kinds of filter rods with different length and materials. This equipment is mainly used for producing special combining filter rods for the cigarette making. The dual/triple filter rod maker can effectively reduce the tar content in the cigarettes to lower the cigarette harm to people.

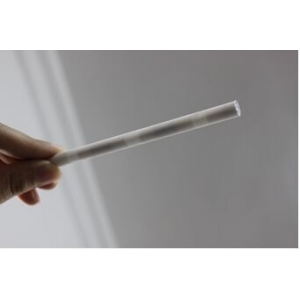

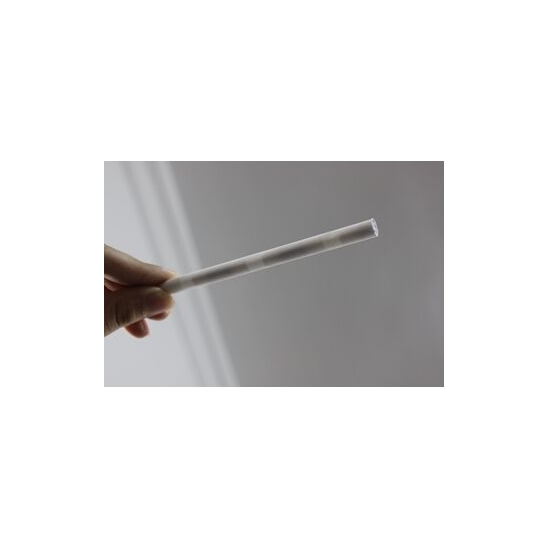

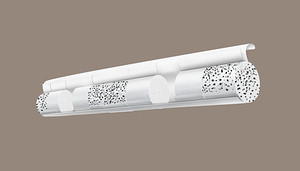

Attached picture is a filter combination of Charcoal filters and normal fitlers with hollow space. It's called charcoal recessed filter rod which can be found in famous cigarette brand: PARLIAMENT.

Highlights



Parameters:
Output: 200m/min	Power supply : 380v±38v(3 phases)
Filter plug diameter: Φ7.64-Φ7.79mm	Total power: 33kw
Filter plug length: 64-150mm	Sound level: ≤ 85dB(A)
Multi filter section ratio: to be customized	Overall size: 3200mm×880mm×2300mm
Requirements for the original filter plug:	Total weight: 2800kg
L1=Φd±0.3mm(combining filter material core)
L2=Φd±0.3mm(acetate fiber material core)
Diameter Φ±0.1mm roundness≤0.35mm

FEEDING MATERIAL

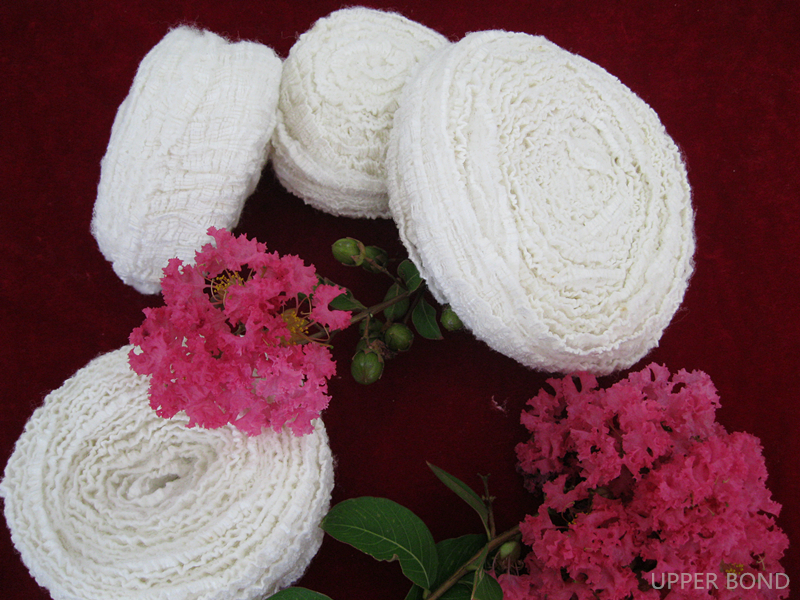

Cellulose Acetate Tows
