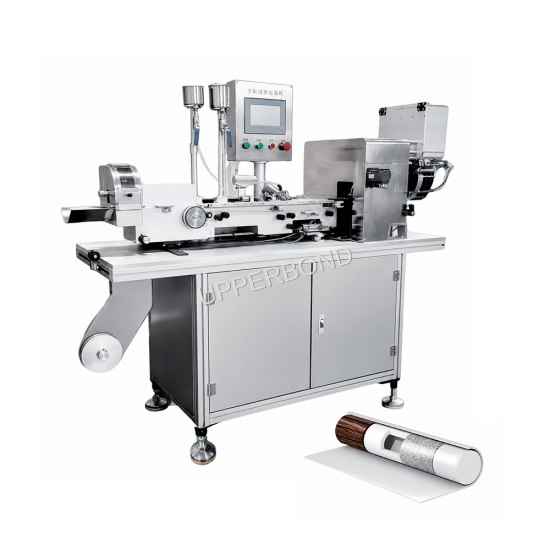

Dual Filter Rod Combining Machine For HNB Laboratory and Tobacco R&D

• Lead Time: 15-30 days

Contact Supplier

Lab combiner equipment is used to make Heat-Not-Burnstick sample for testing before mass production.

Capacity: 15 stick/min

Filter hopper unit: 4 pcs

Filter hopper capacity: 150 pcs/hopper

Filter cutting length: 7-45 mm

Dimension: 1600*600*1600 mm

Equipment Parameters

Material Types: Tobacco shreds, bobbin paper, and glue

Production Capacity: Up to 100 cigarettes/min (adjustable speed)

Equipment Dimensions: 1600 x 500 x 1600 mm (L x W x H)

Power Specifications: Total 1KW, single-phase 220V

Cigarette Length Specification: Minimum length of 10 mm (adjustable via touchscreen)

Cutting Accuracy: ±0.3 mm

Standard Outer Diameter: φ7.8 mm (customizable)

Operating Temperature: 10℃ to 45℃

Operating Humidity: 95% RH
