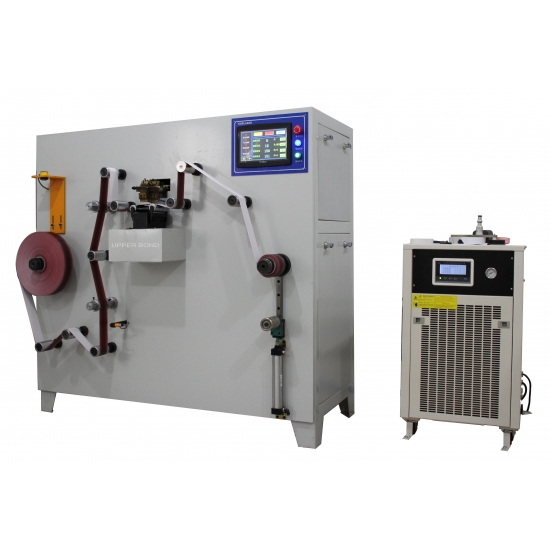

CTP-L100/200 Laser Perforation Machine Off Line is composed of optics, mechanical drive and electric control. It is typical optical-mechanical-electrical integration equipment.

Features

1. Microcomputer intelligent Control system from German SIMEMS offer a convenient operation.

2. Laser generator adopts U.S. SYNAD RF RF-excited CO 2 100W laser, with long working life and high stability.

3. The LCD screen display: demonstrate various work parameters to make operation more intuitionistic.

4. Mechanical corrective devices ensure the punch edge distance and the flat panel face.

5. Shortcut function keys make easy operation. A click-to-get.

6. Fault Diagnosis Equipment shows failure directly on LCD screen for easy maintain.

7. Rewinding system adopts Japanese YASKAWA VS-606V7 Inverter systems with high reliability.

8. Strong function of eliminate waste: remove the product exhaust gas and maintain fresh air for production environment.

Parameters:

Speed of Perforation :            40m/min-250m/min

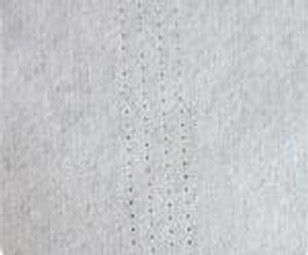

Diameter of Perforation :           Min 80×80um Max 400×200um

Density of Perforation :           5-30pcs/cm(adjusted)

Perforation style :              both sides, 1-2 rows each side (Adjusted)

                                          both sides, 1-4rows each side (Adjusted)

                                          both sides, 1-6 rows each side (Adjusted)
