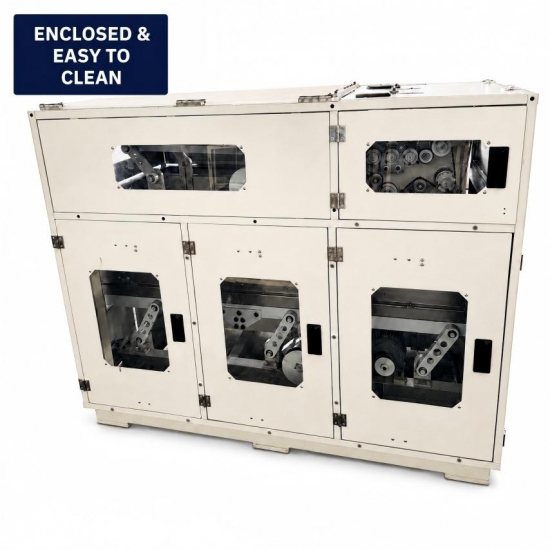

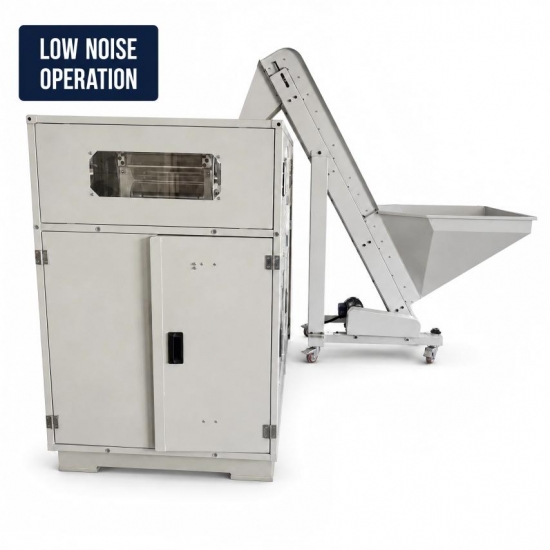

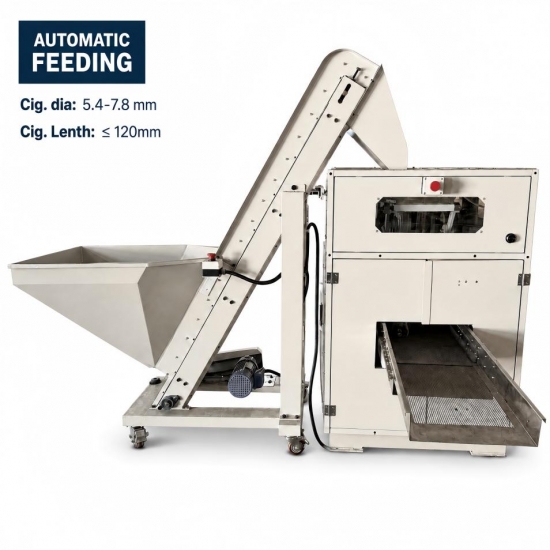

Reclaimer for Rejected Cigarette
It is specific equipment used for reclaiming rejected tobacco from cigarette making combination , with features of cramped structure , fine appearance , small volume and low noise. The way of opening cigarette rod keeps high length ratio , low paper scraps content without lowing down grade and changing moisture and colour of cut tobacco , which can be directly used for making cigarette. The equipment can be installed in cigarette making-packing workshop and made complement to making combination.

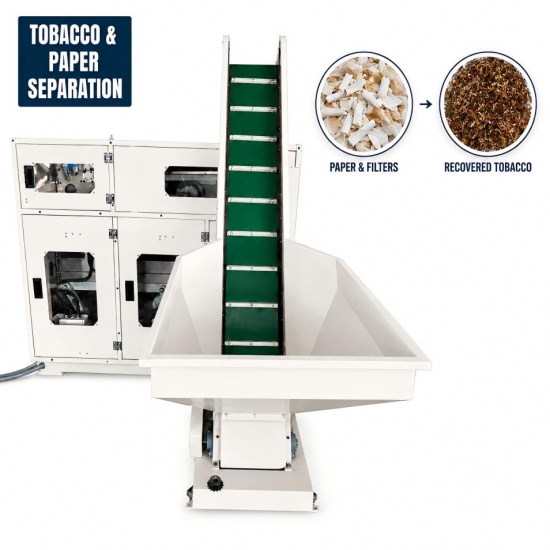

Paper and Tobacco Thread Split Machine
This paper and tobacco thread split machine has the advantages of concise and nice structure, energy-saving, easy-operating, high threshing performance rate, no tobacco paper tows during the recovery of tobacco threads, little smashing of the tobacco threads, and high production rate .The residual tobacco threads treated by this machine can be used to re-produce cigarettes without any other processing. This machine plays an important role in reducing tobacco consumption in cigarette-making factories, and in increasing economic profit for the factories

Specifications
The equipment overall structure is fully-enclosed box-type and composed of feeding, loosing, ordering, pressing and transferring, rod opening, tearing, stripping, cut rag-paper separating, cut rag-shorts separating, dedusting, metal testing and automatic controlling etc.
Cigarette Diameter |
5.4-7.8 mm |
Cigarette Lenth |
≤ 120mm |
Capacity |
50-60 kgs/h |
Ripper Dimension |
2250x1110x1519 mm |
Feeder Dimension |
2000x900x1340 mm |
Tobacco Recycling Rate |
>96% |
Power Supply |
3 Phases 380V 50HZ |
Power Supply
This machine adopts the three-phase four-wire system, 3N-380V/220V, 50HZ.The power is plugged through the X1 cable connector couple of the provided main motor. The gross power for the power supply configuration is 3KVA.


Related Tags : Tobacco Ripping Machine Tobacco Ripper Cigarette Reclaimer Machine

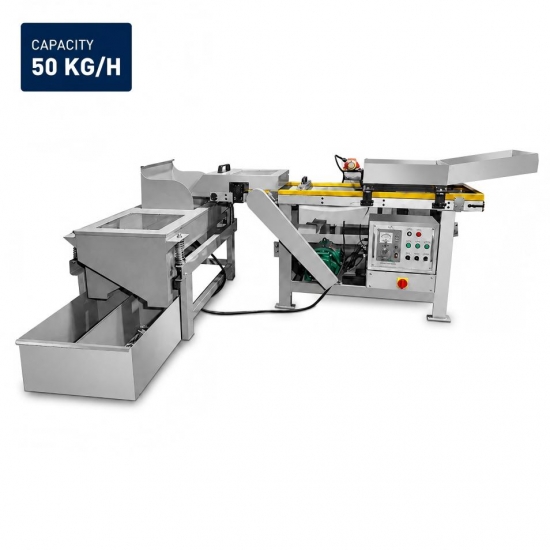

Next:50kg/H Automatic Waste Cigarette Tobacco Recovery and Paper Separation Machine
-
