High-Precision Ventilation Hole Processing for Cigarette and HNB Stick Development

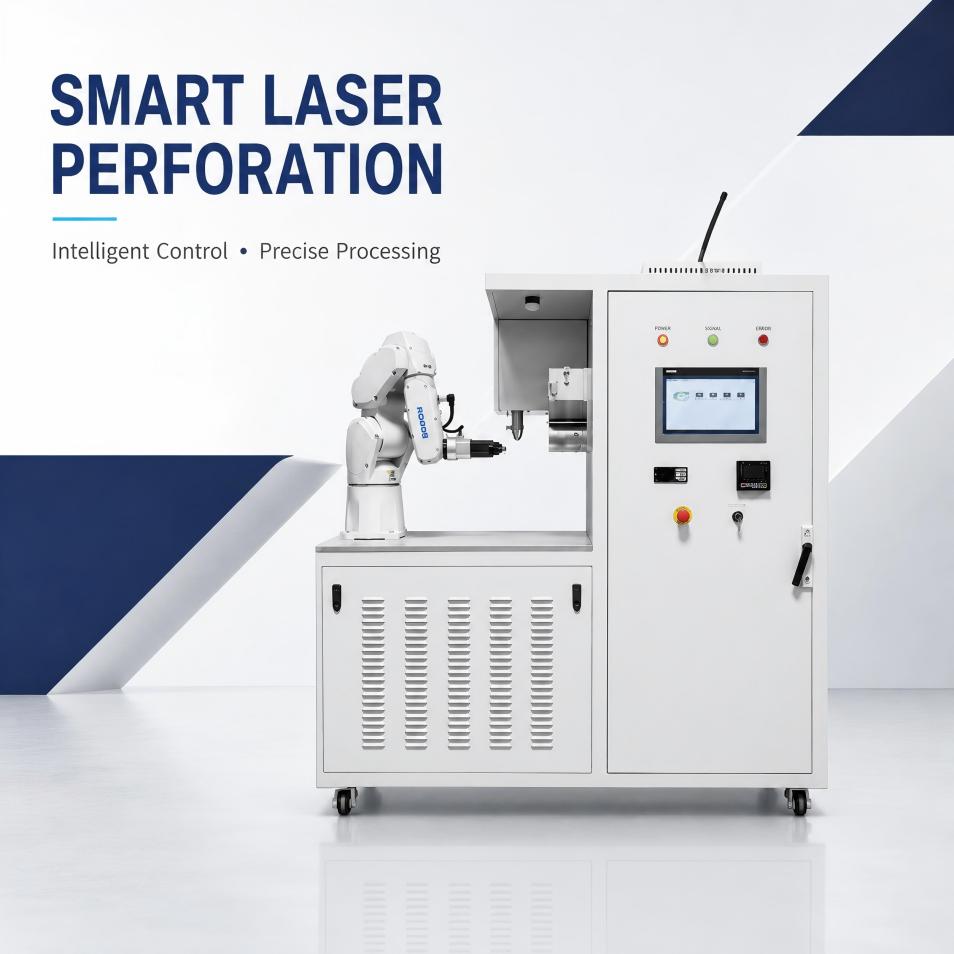

The Smart Laser Perforation Machine is designed for laboratory testing, product development and small-batch sample production. It performs precise ventilation perforation on the tipping paper around cigarette or HNB filter sections.

The machine supports different stick sizes, perforation patterns and materials. Tested processing parameters can be transferred to production equipment, helping manufacturers shorten product development cycles and reduce repeated industrial trials.

Technical Specifications

Parameter	Specification
Product Name	Smart Laser Perforation Machine
Application	Cigarette and HNB stick perforation

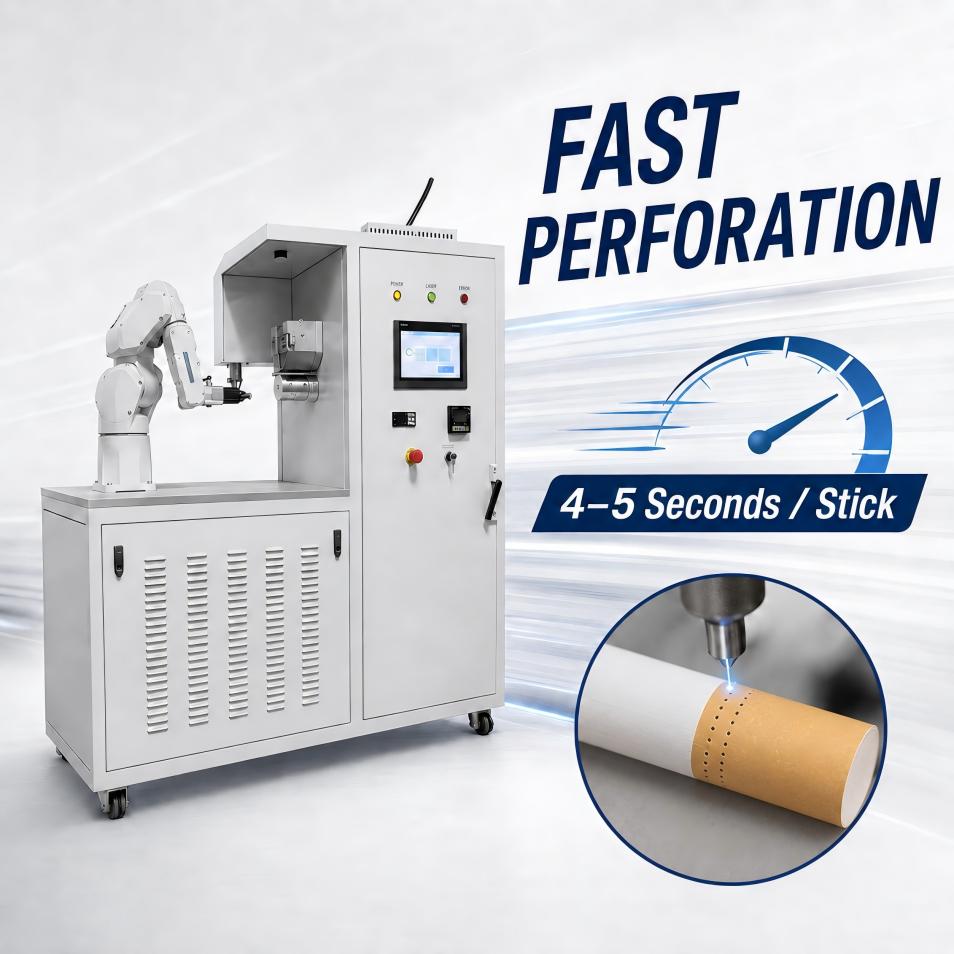

Working Speed	4–5 seconds/stick, adjustable
Stick Diameter	Φ5.0–8.0 mm, adjustable
Material Length	20–100 mm, adjustable
Hole Diameter	0.2–1.2 mm
Hole Quantity	Customizable
Perforation Rows	Customizable
Perforation Depth	Adjustable

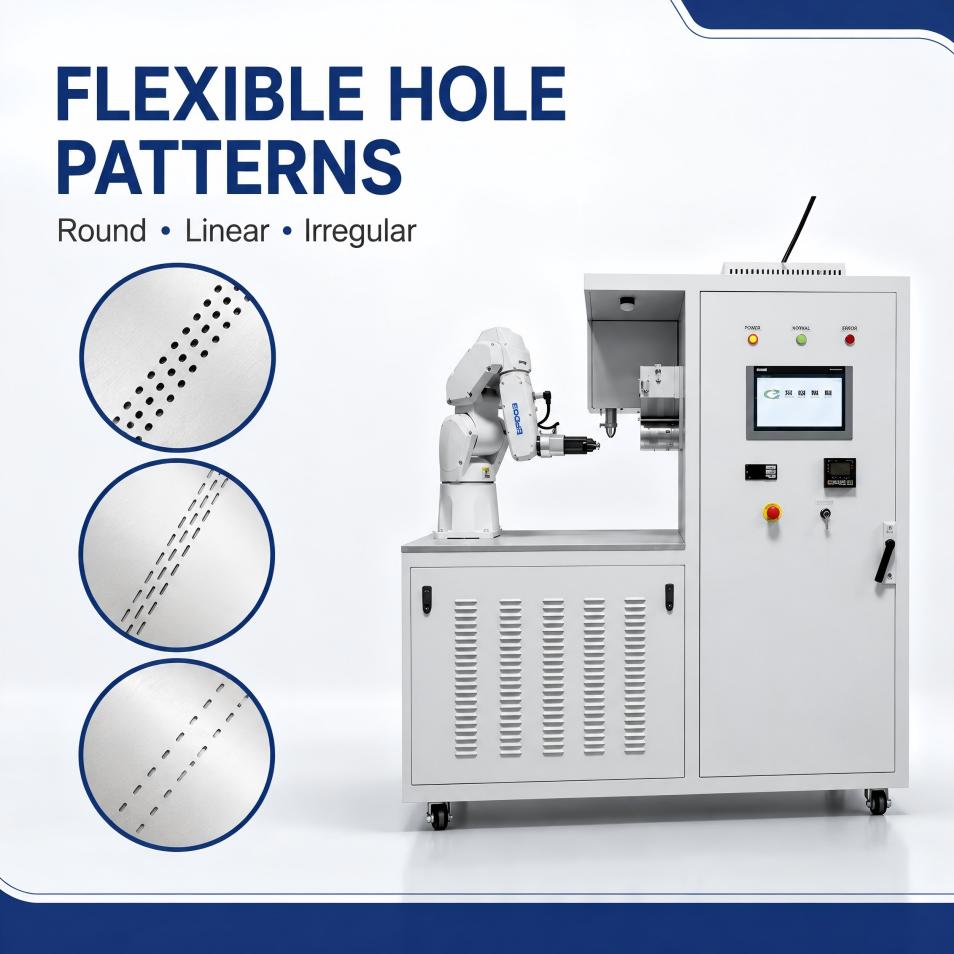

Hole Patterns	Round, linear, dotted-line and irregular holes
Processing Direction	Longitudinal, transverse, angled and end-face
Compatible Materials	Paper, plant-based, plastic and ceramic materials
Control System	Intelligent control with a six-axis industrial robot
Optical Components	Production-grade precision optical components

Why Choose This Machine?

• Designed specifically for laboratory testing and product development
• Accurate perforation on cigarette tipping paper
• Adjustable hole diameter, quantity, rows and depth
• Supports different stick diameters and lengths
• Flexible six-axis robotic positioning
• Multiple standard and customized hole patterns
• Production-grade optical components
• Repeatable processing and transferable technical data
