YB915 Over Wrapper for Cigarette Packing Machine
  • YB915
  • Huangpu, Guangzhou
  • T/T
  • Green
  • 1-2 months
Contact Supplier Chat Now !
Product Details

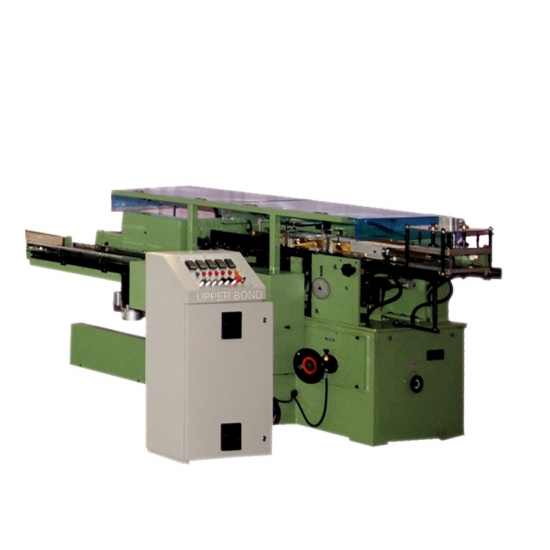

YB915 Over Wrapper for Cigarette Packing Machine



APPLICATION:


Good quality cigarette cellophane over-wrapping machine for box packing is widely applicable to automatic film packaging various single boxed articles with a gold tear tape for easy opening, such as medicine, health-care products, foodstuff, cosmetics, and stationery and audio-visual products.



FEATURE:



1.     The machine integrated with electrical, pneumatic, mechanical, working stable and reliable, three cams design is the newest innovative and had patent and CE approved.

2.     Uses inverter to control the speed, so could adjust according to the operation need.

3.     The mould change easy, without dismantle drive chain, hopper .save time greatly.

4.     New type double safeguard construction, won’t broke machine parts for any incident.

5.     New type dual cutting knife replace traditional single knife, so could use for very long time.

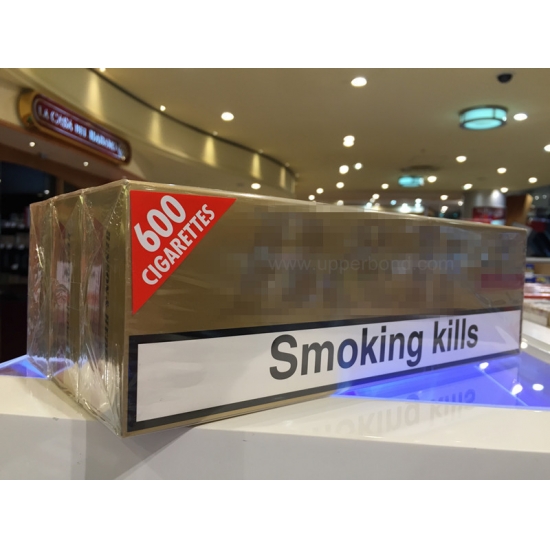

FINISHED GOODS:





TECHNICAL PARAMETERS:



Item

Over wrapper

1.Maximum Speed

18 cartons/min

2.PLC

Siemens

3.Technical Documents

English only

4.Ambient Temp

18-23°c

5.Ambient RH

50-85%

RH

6.Machine color

Green

7.Year two class preparation

According to user’s needs to order

8.Compressed Air

From 3-C154 connect to come over

9.Diameter Supply Line

Compress air,  Inside diameter 8-10mm nylon tube

10.Voltage

380 v, 3 phase 60 hz

11.Connected Load

2.12 kw

12.Safety Loop Voltage

24 v

13.Neutral wire required

Yes

14.BOPP

1. (GB/12026-89) Nature: Polypropylene BOPP for heat-sealed, can be stretched in vertical two ways. The specification should conform to the Nation Standard GB/12026-89.

2. Dosage: 19-23g/ m2
3. Width: 350mm
4. Diameter of bobbin core diameter :75mm

15.Tear strip

1. Nature of Anti-stretch is strong, force of break no less than 10N, plain and straight, without spirals.
2. Width: 2.5mm
3. Diameter of core diameter: 28mm
4. Dosage: 40-70g/ m2
