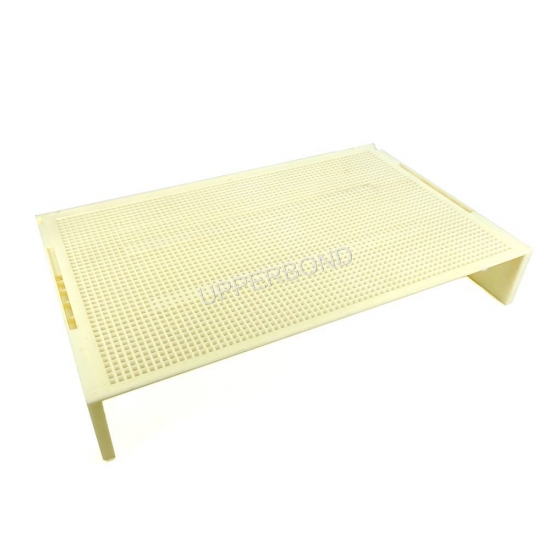

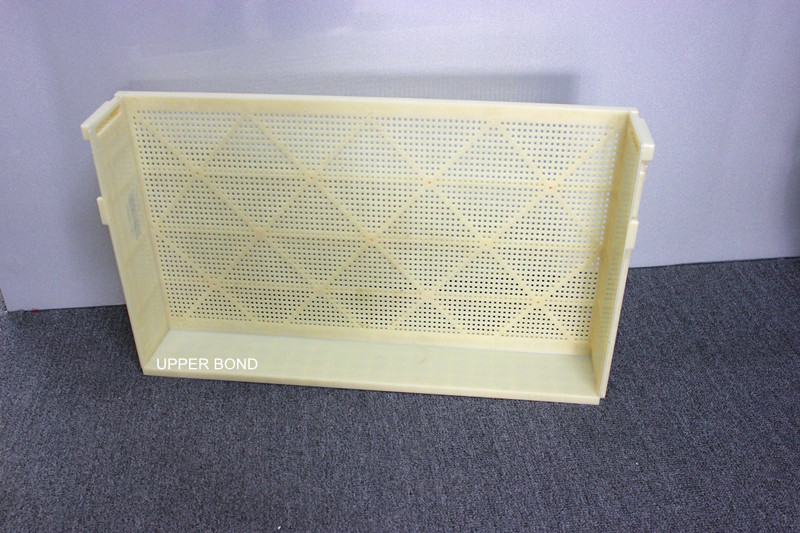

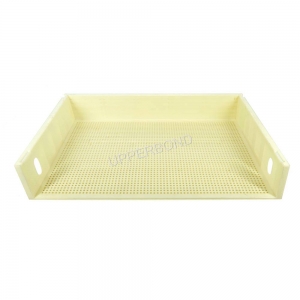

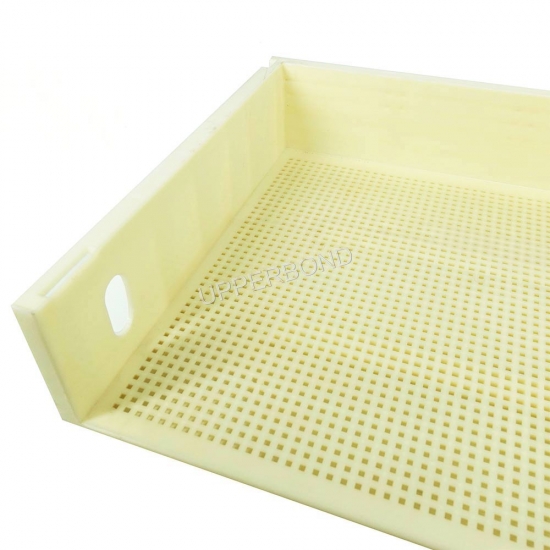

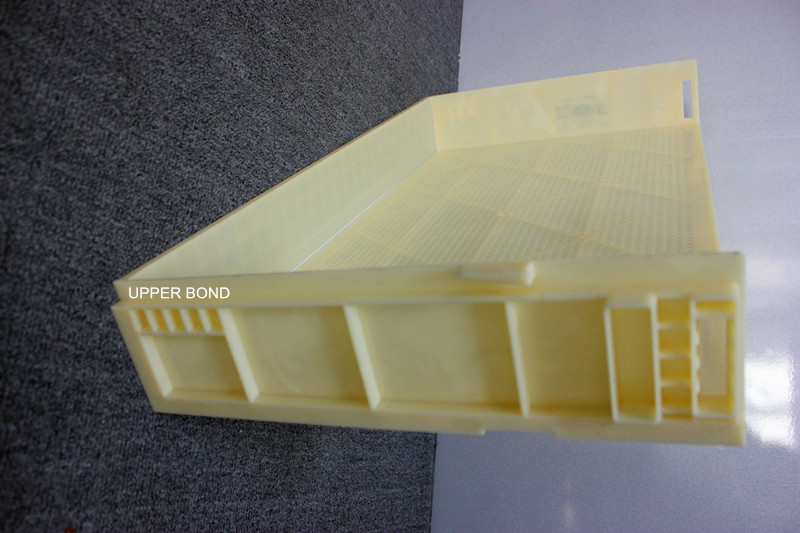

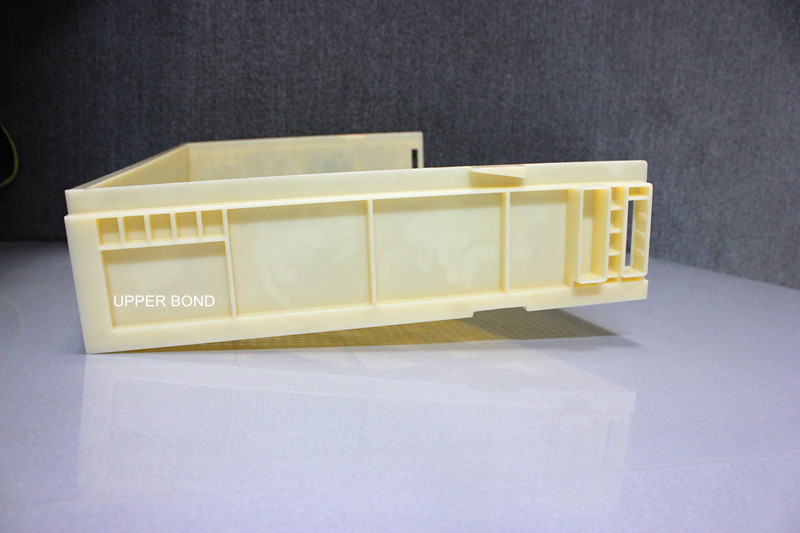

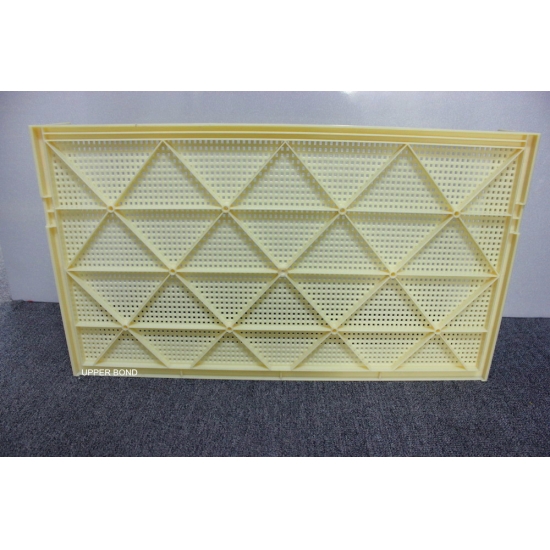

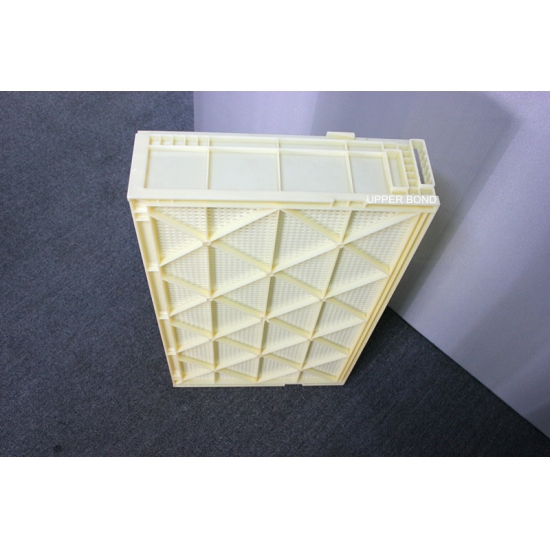

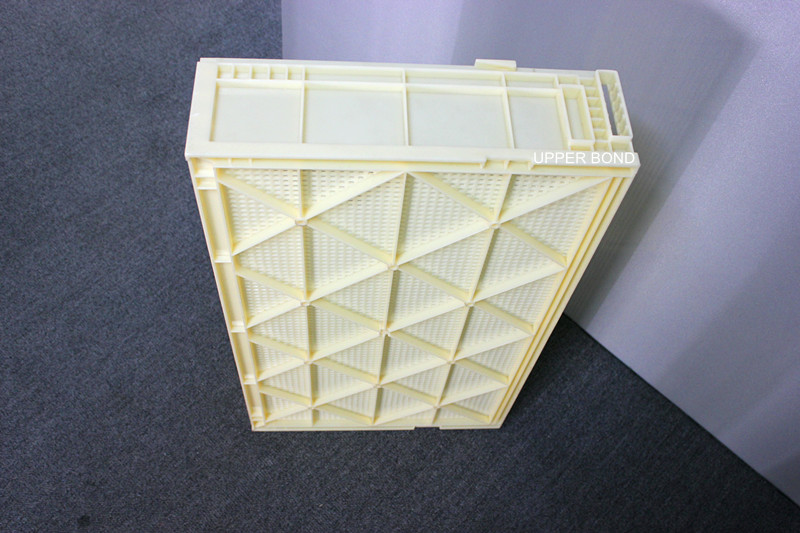

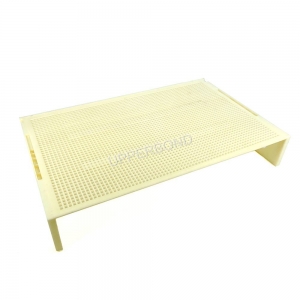

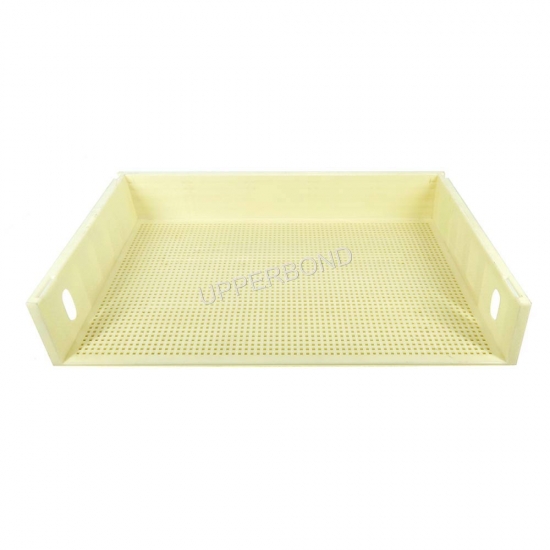

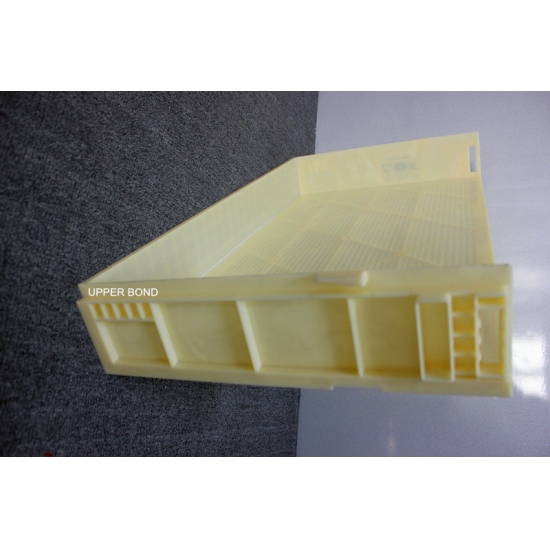

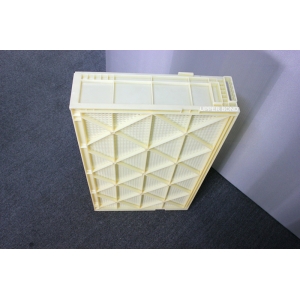

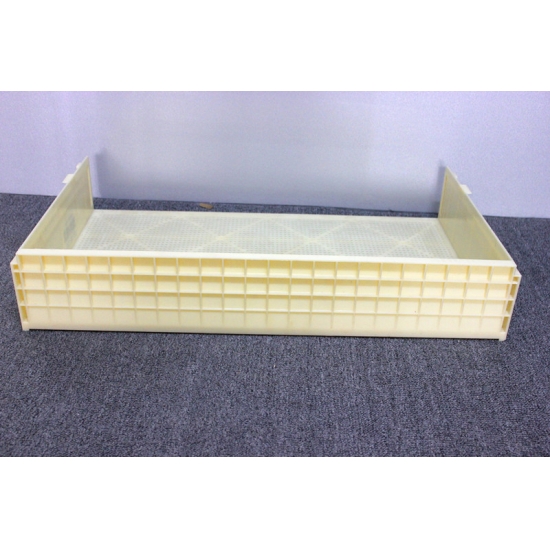

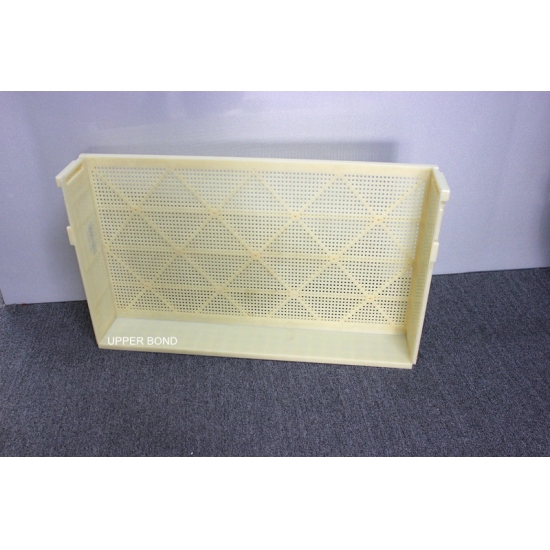

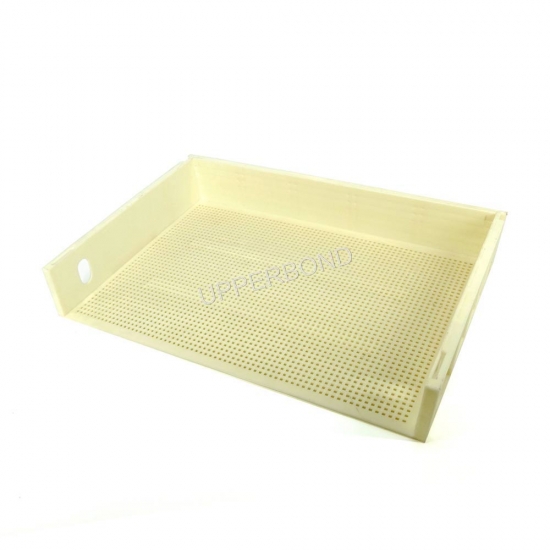

Cigarette Filter Rod Loading Tray For MK8 / MK9 /Protos 70



Introduction:


The filter rod tray and cigarette tray series products we manufactured are refer to foreign tobacco industry standard and combine the domestic actual operating requirement. The science design, elaboration makes our product rational construction, exterior novelty, thermo stability, Corrosion-resistance, not easy to deformation and broken.  And our product are full specifications, quality innovate and suit to different length of the filter rod.


Our products adopt 100% imported ABS engineering plastic and advanced processing technique, with high quality accessories, scientific operation flow, sincere serve aim at improves the development of the cigarette factory.


We have renewed our original product in 2000, to make our products more rational at structure, shape and specification and more accord with current new type equipment.  We design the stackle and pile-up device to solve the transport problem without waste the space. Both side of the assorted flashboard of the filter rod tray can be used. Except the standard type and the general type, we exploit the special specification product, such as, stainless steel dumping tray device type.  At present there are 23 types and specification of cigarette tray, filter rod tray offer to foreign and domestic tobacco market.



Stainless steel dumping tray device filter rod series


Type

Overall dimensions

Inside dimension

Rod specification

700/84

695 x 400 x 105

670 x 385 x 90

84mm rod

700/100

695 x 400 x 125

670 x 385 x110

100mm rod

700/110

695 x 400 x 135

670 x 385 x120

110mm rod

700/120

695 x 400 x 145

670 x 385 x130

120mm rod

700/132

695 x 400 x 157

670 x 383 x142

132mm rod

700/140

695 x 400 x 170

670 x 380 x155

140mm rod

700/144

695 x 400 x 170

670 x 380 x155

144mm rod


Filter rod special purpose spile series(double side type)


Type

Overall dimensions

Filter rod tray matching specs

700/100

765 x 80 x 10

Match 700/100 type filter rod tray

700/110

765 x 80 x 10

Match 700/110 type filter rod tray

700/120

765 x 100 x 10

Match 700/120 type filter rod tray

700/132

765 x 100 x 10

Match 700/132 type filter rod tray

700/140

765 x 100 x 10

Match 700/140 type filter rod tray

700/144

765 x 100 x 10

Match 700/144 type filter rod tray



Material& Performance


Material:

Adopt imported ABS engineering resin plastic.

Tensile strength

Kg/c

Flexural strength

Kg/c

Hardness

R

Impact strength

Kg./c

Deformation temperature

520

750

120

25

90


Performance:

Thermostatically

Low temperature resistance

Corrosion-resistance

Shock resistance

Difficult deformation

Difficult broken
