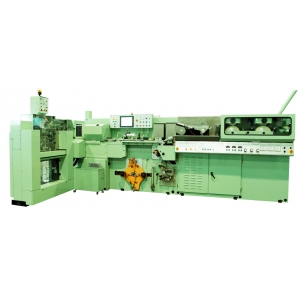

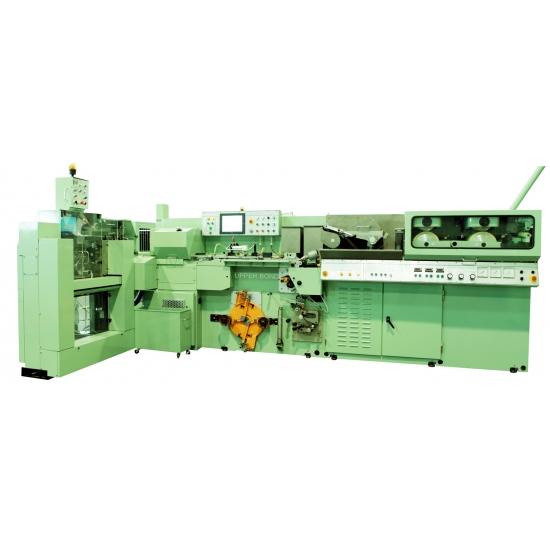

High Speed KDF2 Cigarette Filter Rod Maker



Production Process: To make Tobacco cigarette filter rod



SPECIFICATIONS


KDF2 Cigarette Filter Rod Making Machine


1. Filter Rod Making Machine

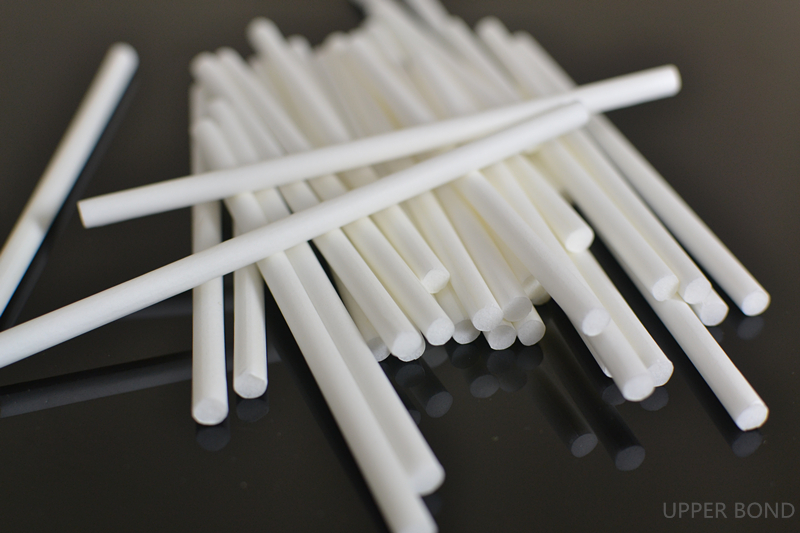

2. High quality cigarette filter

3. Easy control machine





KDF2 Filter Rod Making Combination includes YL12D Tow Processor, YL22D Filter Rod Maker, and YJ35D Tray Filler. It is an updated type of filter rod making combination improved from AF2/KDF2/HCF80 (HAUNI).It keeps the traditional advantage of structure and adopts advanced techniques of SERVO controller, communication and inspection. Its operation is very stable, and can produce high quality filter rod. Production Speed reaches 400m/min.




TECHNICAL HIGHTLIGHT


1. The electrical control system adopts SIEMENS S7-300 PLC control system.


2. This combination reserves the interfaces of factory informationization and network.


3. Man-machine interface makes it easy to communicate between operator and machines.


4. Plugwrap Splicing  at any speed can avoid large fluctuation of machine speed , which can greatly increase the filter rod quality and production efficiency.


5. Driving and driven linkage with 5 servo motors is adopted for the system. Mechanical power loss won’t occur. High accuracy electronic synchronous drive for the system realizes synchronous speed and phase which intensifies original mechanical driving performance.




MAIN PARAMETERS




1.Output:

400m/min

2.Power Voltage:

380V±38V

Power Frequency:

50HZ±1HZ

Total Power:

22KVA

3.Filter Rod Range



  Filter Rod Diameter:

φ6 –φ9mm

  Filter Rod Length:

64mm–150mm

4.Normal Specification



Filter Rod Diameter:

φ7.7 –φ7.79mm

Standard Filter Rod Length:

120±0.5mm

Filter Rod Length:

90,100,120,150mm

5.OVERALL SIZE(L×W×H):

8060×2370×3000mm

6.Weight:



YL12D Tow Processor:

1100Kg

YL22D Filter Rod Maker:

2000Kg

YJ35D Tray Filler:

1500Kg



FEEDING MATERIAL


Celloluse Acetate Tows








Related Tags : Filter Rod Making Machine Cigarette Filter Rod Manufacturing Machine Tobacco Cigarette Filter Rod Maker

Previous:YL43 Dual/Triple Charcoal Filter Rod Maker (Special combination)

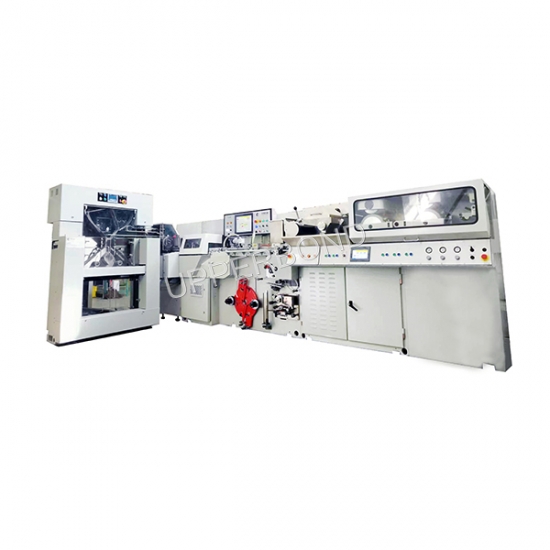

Next:ZL23 Cigarette Filter Rod Maker For Cellulose Acetate Tows
