YP11 Automatic Cigarette Case Packer 258 Cartons / Min
  • YP11 Case Packer
  • HUANGPU, GUANGZHOU
  • T/T, L/C
  • 3-4 months
Contact Supplier
Product Details

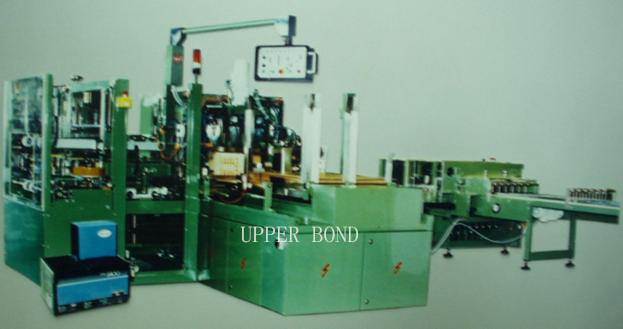

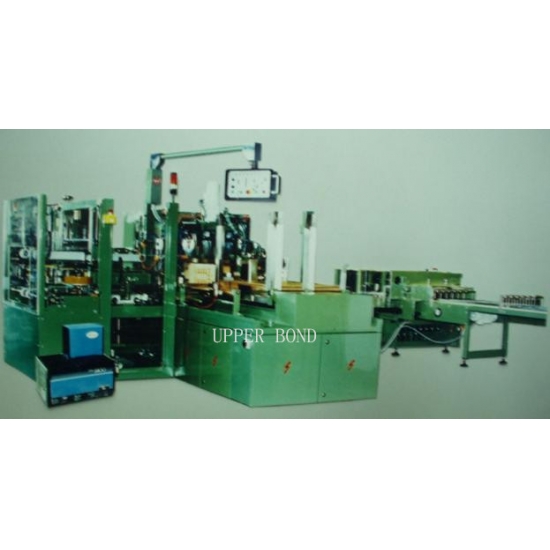

YP11 Automatic Cigarette Case Packer 258 Cartons / Min

FEATURE



1.The machine designed according to the introduced technique of 465/329B Case Packer of Germany Focke Co. and the working records of more than 70 YP11 Case Packers.

2.Automatic operation.

3.Complete and easy-operated inspect & control points with trouble display.

4.Reliable Siemens programmable controller and precise cam mechanism to real-time control the machine.

5.Easy shifting between two packing rates of 50cartons/case and 25cartons/case.

6.Modular structure and easy maintenance.




MAIN TECHNICAL DATA


1.Rated productivity: 4 cases/min (remark: 50 cartons/case)

2.Packing specifications (L×H×B):

Max. 610mm×260mm×470mm Min. 280mm×230mm×440mm

3.Rated power of electric system: 9.023kW

Case Packer: 5.0kW Hot Plaster machine: 4.023kW

4.Compressed air consumption: 2.5L/min

Pressure: 0.6MPa Vacuum pump flow: 40/h Pressure: -0.08MPa

5.Entry height: 700mm±5mm

6.Exit height: 805mm±5mm

7.Net weight:2500kg



SEALING


1.Hot adhesive

2.Adhesive tape

3.Combined



OPTIONS


1.Adhesive melting system

2.Normal adhesive system

3.Vacuum pump

4.YP11.81 Transverse Collector

5.YP82 Transverse-longitude Transfer
