High Speed Tipping Paper Gravure Printing Machine
  • UBD10B-2
  • TT, L/C,WU
Contact Supplier
Product Details

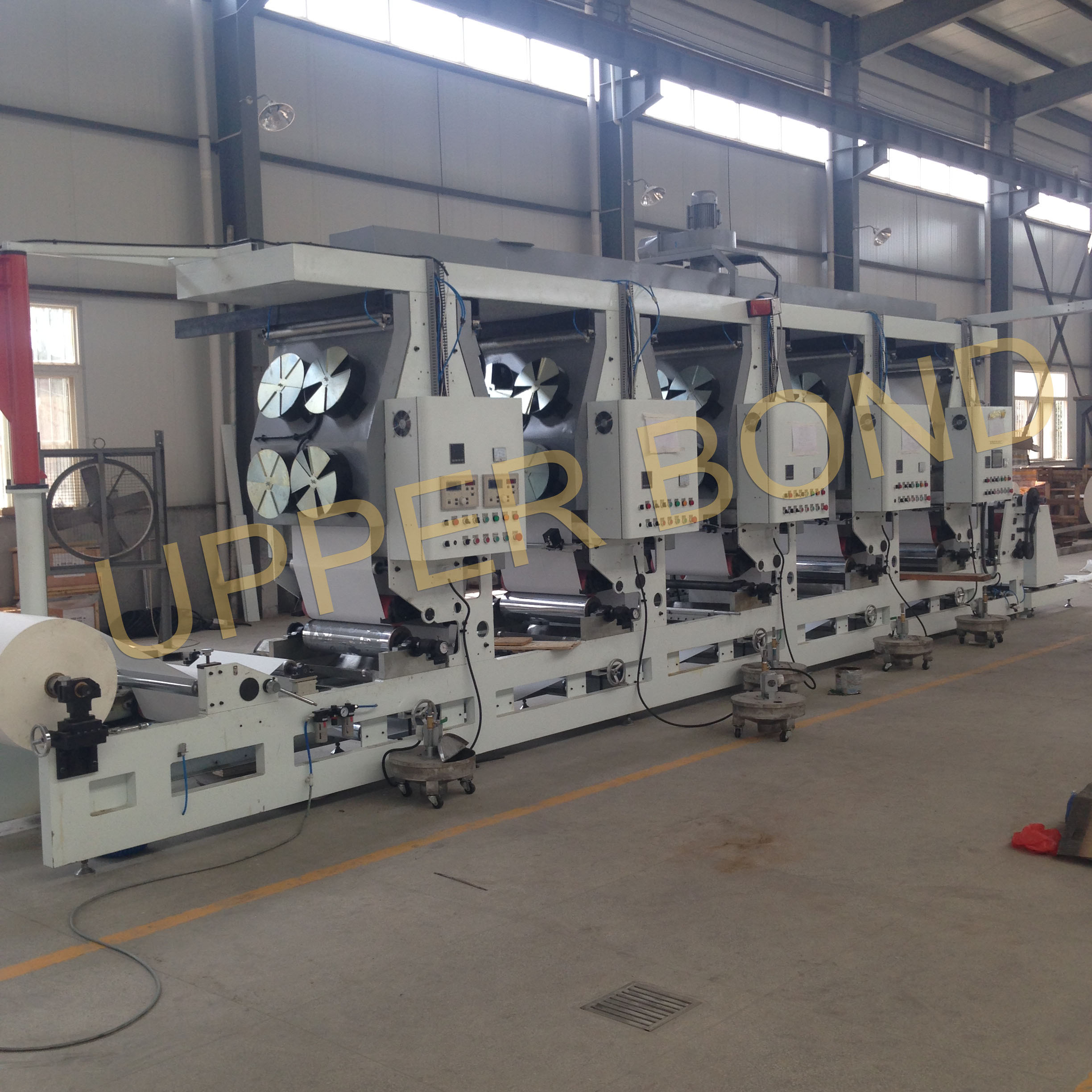

Tipping paper Gravure Printing Machine



Machine model: ZWY-650F Gravure Printing Machine



Usage range: Tipping paper printing machine



Machine running speed: 90m/min



Printing Width:


Maximum input width 600mm

Maximum print width 590mm



Printing repeat perimeter: 510-570m



Printing speed: 30-90m/min



Performance Guarantee: overprint precision: ±0.15mm



Printing Machine parameters:


1.4 colour Gravure print

2.Print plate use with-axial form

3.Main machine with standard unreeling device and draw back rolling device.

4.Upper computer system control.

5.Unreeling: Spool maximum Outer Diameter 1100mm

6.   Spool internal diameter: 7.5mm


Print machine for tipping paper



6.  Rolling:


Spool maximum Outer Diameter 1100mm

Spool internal diameter 7.5mm


7.  With Automatic Tension control system.



Power Capacity& Power Supply

3 phase power: 380V/50Hz

Rated power: 170kw

Compressed air consumption: 0.3M3/H   pressure: 0.5Mpa

Machine color: White color


Component:


(1)  Weinan Kesai vision-adjust system

(2)  Main power use frequency converter control

(3)  LC Lower computer intelligent control system

(4)  Ningxia tension controller and magnetic powder brake.

(5)  PST computer vision system.









Related Tags : Tobacco Pipe Making Equipment printing machine Tipping Paper Packaging
