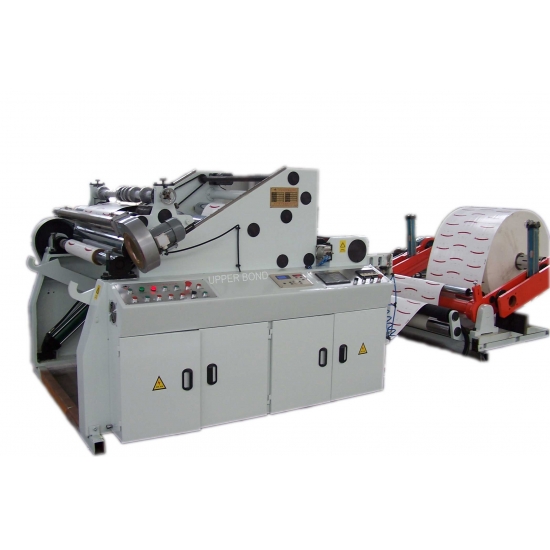

High Quality Cigarette Inner Frame Cutting Machine

INTRODUCTION

SLF-800 High-speed Biaxial Cutting Machine is a improve design’s biaxial cutting machine base of the imported cutting machine in our company, widely used in aluminized paper, tipping paper, BOPP etc itemize and slitting. Through a large number of user’s practice show that this machine compact model, easy operation, good quality of disk slitting and high productivity, is the good choice of the paper processing user equipment selection. This machine is mainly used for longitudinal cutting drum paper, it’s a kind of high speed, large range of cutting width, high degree of automation of biaxial rolling slitting machine.

TECHNICAL PARAMETER

1. Roller width：                                 800mm

2. Maximum material width：             ≤φ750mm

3. Unreeling diameter：                    ≤φ1000mm

4. Rolling diameter：                        ≤φ600mm

5. Slitting width：                              ≥40mm

6. Slitting thickness:                          0.01—0.1mm

7. Maximum running speed：           250m/min（when rolling diameter is φ150m）

8. The unevenness of slitting face：≤±0.15mm

9. Cutting ways：                             Disc knives way

10. Emptying diameter of axle：        φ76mm（gas expanded shaft）

11. Total power：                              15KW

12. Weight:                                        4.8ton

Boundary dimension：                3205*3850*2750mm
