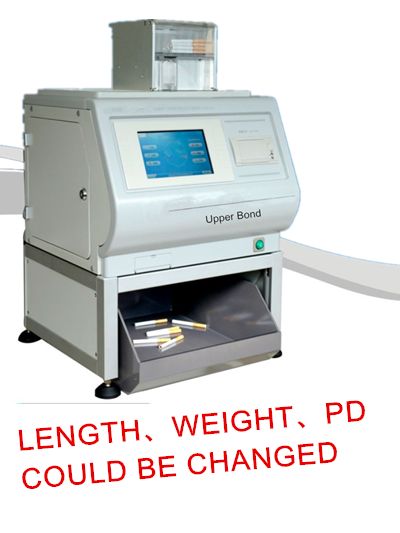

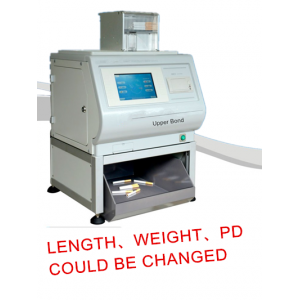

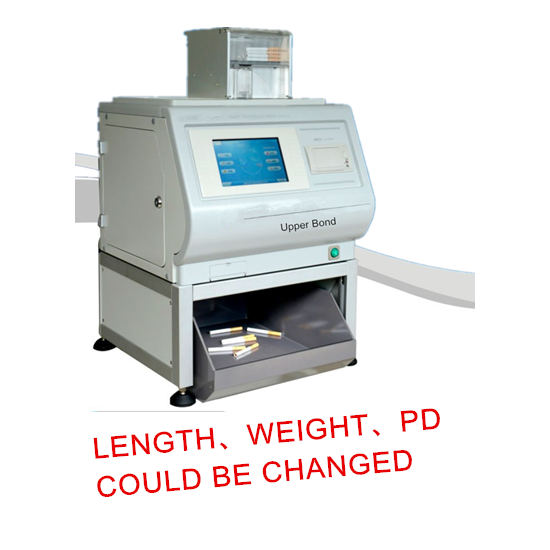

High Measurement Speed Filter Rods Tester Could Test PD Weight and Length

TESTING RANGES

Could test the PD,Weight,Length,Circumference and Hardness.

MAIN FUNCTIONS

1.  Using the Windows XP operated system, it is applicable to control core of industrialization, really embedded technology

2.  Imported laser micrometer as measuring sensor, non-contact and high precision, high resolution

3.  Could automatically test and fast measurement speed

4.  Improve the fault diagnosis of self-check and institutions

5.  7 inches TFT color-control LCD screen, operation interface in Chinese, could be touched operation. Convenient and fast

6.  Perfect data processing function, through RS232 and USB interface to exchange data, realize data sharing

7.  The large capacity electronic hard disk to store data, safe and reliable

8.  One-piece involved, attractive appearance

TECHNICAL INDEX

Measurement range:

Pressure Drop: 0~8000Pa

Ventilation rate: 0-100℃

Resolution:

Pressure Drop: 10Pa

Ventilation rate: 0.1%

Accuracy:

Pressure Drop: ±0.1%

Ventilation rate: ±1%

Sample length range: 80-150mm

Sample circumference range: 21~28mm

Fixed air speed: 17.5ml/s

WORK ENVIRONMENT REQUIREMENTS

Compressed air supply: 5bar, 50 L/minute

Working environment temperature: + 10 ℃ ~ + 40 ℃(recommended temperature 22 ± 2 ℃)

Recommended environment humidity: 60 + / - 5% RH

Power supply: AC220V±10%

                       50Hz±5%

Air speed: 17.5ml/s
