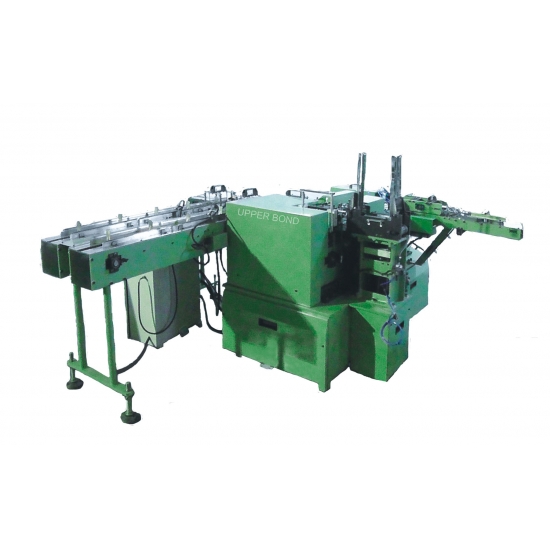

Hard Packet Packing Line for Molasses Tobacco
Application:

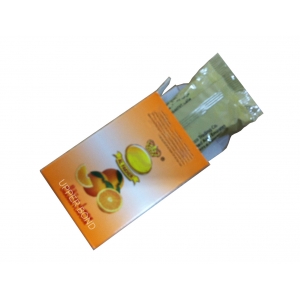

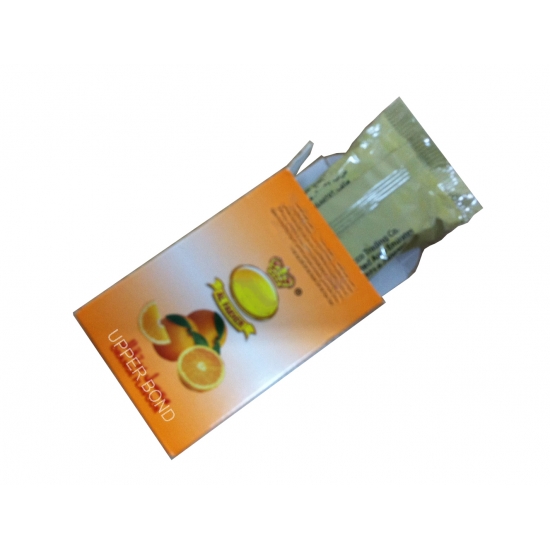

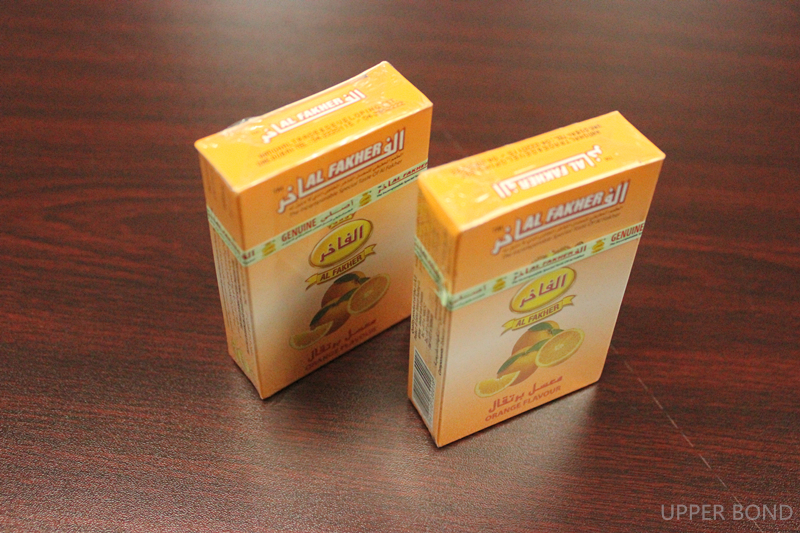

This machine is suitable for molasses tobacco into the little paper box.
Feature :
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance, operation is easy.
Main technical parameters:
Item |
Parameters |
|
Encasing speed |
30-100 boxes/min |
|
Box |
Quality requirement |
250-350g/m2 [Base on carton size] |
Dimension range |
(70-180)mm×(30-85)mm×(14-50)mm |
|
Leaflet |
Quality requirement |
60-70g/ m2 |
Unfolded leaflet specification |
(80-250)mm×(90-170)mm |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
120-160L/min |
|
Power supply |
220V 50HZ |
|
Main motor power |
0.75kw |
|
Machine dimension(L×W×H) |
3100mm×1100mm×1550mm |
|
Machine weight |
about1400kg |
|
